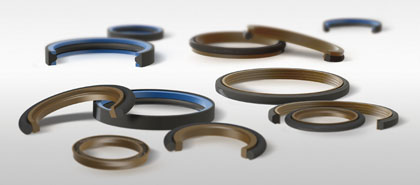

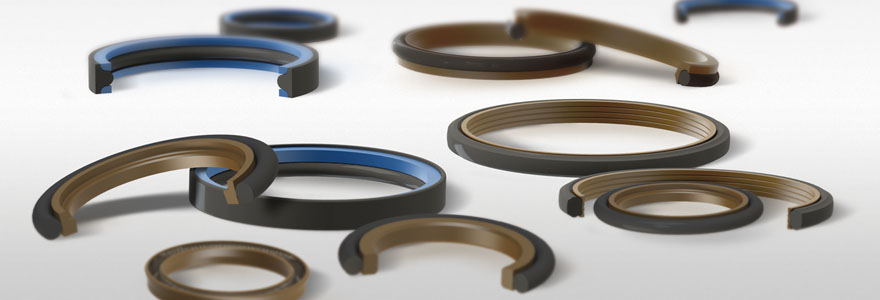

Rod seals
![Joints de tige aéronautiques - Aeronautics Aerospace rod seals - 420 x 185](/media/joints_d_etige_aeronautiques_aeronautics_aerospace_rod_seals__091775000_1003_05062015.jpg)
The rod seals, which are found on actuators and landing gear, must ensure the sealing of fluids while meeting the conditions for extreme use. We will assist you in selecting a seal whilst considering the different variables such as pressure, temperature, type of media, speed, frequency, surface roughness and other specific parameters.
BECA 021
![BECA 021](/media/thumbnails/beca_021__001428500_1126_17112014.gif)
BECA 021
Materials: Elastomer + POM/PTFE
Temperature:
-40°C / +200°C
Pressure:
35 MPa
Speed:
1 m/s
BECA 022
![BECA 022](/media/thumbnails/beca_0022__028565000_1127_17112014.gif)
BECA 022
Materials: Elastomer + POM/PTFE
Temperature:
-40°C / +200°C
Pressure:
35 MPa
Speed:
1 m/s
BECA 150
![BECA 150 - 152 - 154](/media/thumbnails/beca_150_profil__009387500_1603_25112013.gif)
BECA 150
Materials: PTFE + Elastomer
Temperature:
-40°C / +200°C
Pressure:
35 MPa
Speed:
5 m/s
BECA 151
![BECA 151 - 153 - 155](/media/thumbnails/beca_151_profil__025798200_1603_25112013.gif)
BECA 151
Materials: PTFE + Elastomer
Temperature:
-40°C / +200°C
Pressure:
35 MPa
Speed:
5 m/s
BECA 156M
![BECA 156M](/media/thumbnails/beca_156m__045652400_1146_29102014.gif)
BECA 156M
Materials: PTFE + Elastomer
Temperature:
-40°C / +200°C
Pressure:
35 MPa
Speed:
5 m/s
BECA 170
![BECA 170 - 179](/media/thumbnails/beca_170_profil__096613600_1603_25112013.gif)
BECA 170
Materials: PTFE + Elastomer
Temperature:
-40°C / +200°C
Pressure:
35 MPa
Speed:
5 m/s
BECA 172M
![BECA 172M](/media/thumbnails/beca_172m__057907100_1147_29102014.gif)
BECA 172M
Materials: PTFE + Elastomer
Temperature:
-40°C / +200°C
Pressure:
35 MPa
Speed:
5 m/s
BECA 340 - 349
![BECA 340 - 349](/media/thumbnails/beca_340_profil__050567500_1603_25112013.gif)
BECA 340 - 349
Materials: PTFE + Stainless steel
Temperature:
-200°C / +260°C
Pressure:
30 MPa
Speed:
15 m/s
