BECA 008P Rod

BECA 008P Rod
BECA 008 PTFE

Description

The BECA 008P Rod profile is a back-up ring cut at 30°, which has a concave shape that allows it to fit snugly against the O'Ring. The ring is systematically assembled in tandem with an O'Ring and an X'Ring. An uncut version of this profile can be made.

Advantages

Used in static and dynamic applications
May be used for alternating movement applications
Large contact surface area, which protects the O'Ring from deformation caused by pulsating pressures
Preferred assembly in a closed groove for profiles cut at 30°
Assembly in open groove for uncut profiles

Technical data

Temperature

-200°C/+260°C

Pressure

< 250 MPa in static applications
< 20 MPa in alternating applications

Speed

2 m/s in alternating applications

Medias

The majority of liquids, or gaseous or chemical fluids, depending on the type of material selected. Refer to our fluids-materials compatibility guide.

Applications

Automotive
Hydraulic equipment
Mobile machinery
Machine tools
Injection presses
Valves
Hydraulic cylinders

Materials

Standard virgin PTFE
Filled PTFE (fibreglass, carbon, bronze)
Other materials may be used

Dimensions
Materials
Design guidelines

Dimensions

008.004062, 008.004066, 008.005072, 008.005076, 008.006082, 008.006086, 008.008106, 008.008011, 008.010126, 008.010013, 008.012146, 008.012015, 008.014166, 008.014017, 008.015176, 008.015018, 008.016186, 008.016019, 008.018206, 008.018021, 008.020226, 008.020023, 008.022026, 008.022266, 008.025029, 008.025296, 008.028032, 008.028326, 008.030034, 008.030346, 008.032036, 008.032366, 008.035039, 008.035396, 008.036040, 008.036406, 008.040454, 008.040461, 008.042474, 008.042482, 008.045504, 008.045512, 008.048534, 008.048542, 008.050554, 008.050562, 008.052574, 008.052582, 008.055604, 008.055612, 008.056614, 008.056622, 008.060654, 008.060662, 008.063684, 008.063692, 008.065704, 008.065712, 008.070754, 008.070762, 008.075804, 008.075812, 008.080088, 008.080936, 008.085886, 008.085093, 008.090098, 008.090986, 008.095103, 008.095104, 008.100108, 008.100109, 008.105113, 008.105114, 008.110118, 008.110119, 008.115123, 008.115124, 008.120128, 008.120129, 008.125133, 008.125134, 008.130138, 008.130139, 008.135146, 008.140151, 008.150161, 008.160171, 008.170181, 008.180191, 008.190201, 008.200211, 008.210221, 008.220231, 008.230241, 008.240251, 008.250261, 008.280291, 008.300311, 008.320331, 008.350361, 008.360371, 008.400411
Installation drawingLogement Gorge Bague anti-extrusion - Housing Groove Back-up ring - BECA 008P

Materials

The table below indicates the main materials that may be considered for making BECA 008 P back-up rings.

Materials Code
Virgin PTFE P
Fibreglass-filled PTFE V
Bronze-filled PTFE B
Carbon-filled PTFE C
Polyurethane 93 Shore A / 96 Shore D U
PEEK T
Polyoxymethylene (POM) H
Polyamide (PA) D

Design guidelines

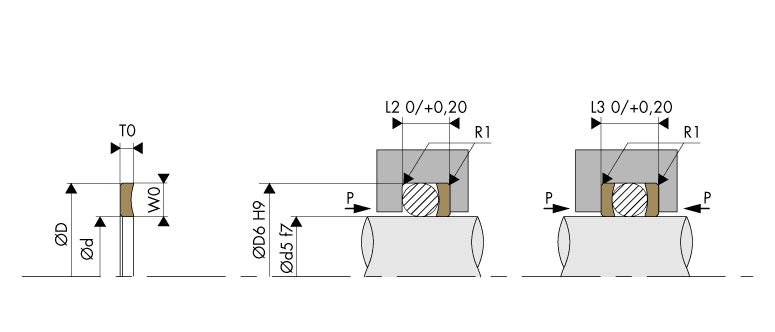

Housing Groove - BECA 008P Rod

Installation dimensions in static and dynamic applications - Internal (rod) sealing only

O'Ring Back-up ring Housing dimensions Radius
Cross-section
Ød2		 Radial height
W0		 Thickness Rod sealing Groove width
Groove diameter
ØD6 H9		 Static Dynamic
static dynamic T0 static dynamic L2 0/+0.20 L3 0/+0.20 L2 0/+020 L3 0/+0.20 R1 ±0.20
1.50 1.10 1.10 1.00 d5 + 2.20 d5 + 2.20 3.20 4.20 3.25 4.25 0.25
1.60 1.15 1.20 1.00 d5 + 2.30 d5 + 2.40 3.50 4.50 3.40 4.40 0.25
1.78 1.30 1.35 1.40 d5 + 2.60 d5 + 2.70 4.10 5.50 4.00 5.40 0.25
1.80 1.30 1.35 1.40 d5 + 2.60 d5 + 2.70 4.10 5.50 4.00 5.40 0.25
2.00 1.50 1.55 1.40 d5 + 3.00 d5 + 3.10 4.30 5.70 4.20 5.60 0.25
2.40 1.80 1.90 1.40 d5 + 3.60 d5 + 3.80 4.80 6.20 4.60 6.00 0.25
2.50 1.90 1.95 1.40 d5 + 3.80 d5 + 3.90 4.90 6.30 4.80 6.20 0.25
2.62 2.00 2.05 1.40 d5 + 4.00 d5 + 4.10 5.00 6.40 4.90 6.30 0.25
2.65 2.00 2.10 1.40 d5 + 4.00 d5 + 4.20 5.10 6.50 4.90 6.30 0.25
3.00 2.30 2.40 1.40 d5 + 4.60 d5 + 4.80 5.90 7.30 5.70 7.10 0.25
3.53 2.70 2.85 1.40 d5 + 5.40 d5 + 5.70 6.50 7.90 6.30 7.70 0.25
3.55 2.70 2.90 1.40 d5 + 5.40 d5 + 5.80 6.60 8.00 6.30 7.70 0.25
4.00 3.10 3.25 1.40 d5 + 6.20 d5 + 6.50 7.00 8.40 6.80 8.20 0.25
5.00 4.00 4.10 1.70 d5 + 8.00 d5 + 8.20 8.40 10.10 8.30 10.00 0.25
5.30 4.30 4.40 1.70 d5 + 8.60 d5 + 8.80 8.60 10.30 8.50 10.20 0.25
5.33 4.30 4.40 1.70 d5 + 8.60 d5 + 8.80 8.80 10.50 8.50 10.20 0.25
5.70 4.60 4.80 1.70 d5 + 9.20 d5 + 9.60 9.10 10.80 8.80 10.50 0.25
6.00 4.90 5.10 1.70 d5 + 9.80 d5 + 10.20 9.50 11.20 9.10 10.80 0.25
6.99 5.80 5.90 2.50 d5 + 11.60 d5 + 11.80 11.80 14.30 11.70 14.20 0.25
8.00 6.70 7.00 2.50 d5 + 13.40 d5 + 14.00 12.70 15.20 12.40 14.90 0.25
8.40 7.10 7.30 2.50 d5 + 14.20 d5 + 14.60 13.00 15.50 12.80 15.30 0.25
103 dimensions found
008.004062
Standard request
 4,0 x 1,1 x 1,0 4,00 6,20 3,20 4,20 0,25 010.1B171 4,00 x 1,50
008.004066
Standard request
 4,0 x 1,3 x 1,4 4,00 6,60 4,10 5,50 0,25 010.1A040 3,68 x 1,78
008.005072
Standard request
 5,0 x 1,1 x 1,0 5,00 7,20 3,20 4,20 0,25 010.1B177 5,00 x 1,50
008.005076
Standard request
 5,0 x 1,3 x 1,4 5,00 7,60 4,10 5,50 0,25 010.1A041 4,47 x 1,78
008.006082
Standard request
 6,0 x 1,1 x 1,0 6,00 8,20 3,20 4,20 0,25 010.1B183 6,00 x 1,50
008.006086
Standard request
 6,0 x 1,3 x 1,4 6,00 8,60 4,10 5,50 0,25 010.1A043 6,07 x 1,78
008.008106
Standard request
 8,0 x 1,3 x 1,4 8,00 10,60 4,10 5,50 0,25 010.1A046 7,65 x 1,78
008.008011
Standard request
 8,0 x 1,5 x 1,4 8,00 11,00 4,30 5,70 0,25 010.1B486 8,00 x 2,00
008.010126
Standard request
 10,0 x 1,3 x 1,4 10,00 12,60 4,10 5,50 0,25 010.1A050 10,82 x 1,78
008.010013
Standard request
 10,0 x 1,5 x 1,4 10,00 13,00 4,30 5,70 0,25 010.1B492 10,00 x 2,00
008.012146
Standard request
 12,0 x 1,3 x 1,4 12,00 14,60 4,10 5,50 0,25 010.1A052 12,42 x 1,78
008.012015
Standard request
 12,0 x 1,5 x 1,4 12,00 15,00 4,30 5,70 0,25 010.1B498 12,00 x 2,00
008.014166
Standard request
 14,0 x 1,3 x 1,4 14,00 16,60 4,10 5,50 0,25 010.1A053 14,00 x 1,78
008.014017
Standard request
 14,0 x 1,5 x 1,4 14,00 17,00 4,30 5,70 0,25 010.1B510 14,00 x 2,00
008.015176
Standard request
 15,0 x 1,3 x 1,4 15,00 17,60 4,10 5,50 0,25 010.1A054 15,60 x 1,78
008.015018
Standard request
 15,0 x 1,5 x 1,4 15,00 18,00 4,30 5,70 0,25 010.1B516 15,00 x 2,00
008.016186
Standard request
 16,0 x 1,3 x 1,4 16,00 18,60 4,10 5,50 0,25 010.1A054 15,60 x 1,78
008.016019
Standard request
 16,0 x 1,5 x 1,4 16,00 19,00 4,30 5,70 0,25 010.1B519 16,00 x 2,00
008.018206
Standard request
 18,0 x 1,3 x 1,4 18,00 20,60 4,10 5,50 0,25 010.1A056 18,77 x 1,78
008.018021
Standard request
 18,0 x 1,5 x 1,4 18,00 21,00 4,30 5,70 0,25 010.1B525 18,00 x 2,00
008.020226
Standard request
 20,0 x 1,3 x 1,4 20,00 22,60 4,10 5,50 0,25 010.1A057 20,35 x 1,78
008.020023
Standard request
 20,0 x 1,5 x 1,4 20,00 23,00 4,30 5,70 0,25 010.1B531 20,00 x 2,00
008.022026
Standard request
 22,0 x 2,0 x 1,4 22,00 26,00 5,00 6,40 0,25 010.1A203 21,89 x 2,62
008.022266
Standard request
 22,0 x 2,3 x 1,4 22,00 26,60 5,90 7,30 0,25 010.1BE19 22,00 x 3,00
008.025029
Standard request
 25,0 x 2,0 x 1,4 25,00 29,00 5,00 6,40 0,25 010.1A207 25,07 x 2,62
008.025296
Standard request
 25,0 x 2,3 x 1,4 25,00 29,60 5,90 7,30 0,25 010.1A289 25,00 x 3,00
008.028032
Standard request
 28,0 x 2,0 x 1,4 28,00 32,00 5,00 6,40 0,25 010.1A209 28,24 x 2,62
008.028326
Standard request
 28,0 x 1,5 x 1,4 28,00 32,60 4,30 5,70 0,25 010.1B555 28,00 x 2,00
008.030034
Standard request
 30,0 x 2,0 x 1,4 30,00 34,00 5,00 6,40 0,25 010.1A210 29,82 x 2,62
008.030346
Standard request
 30,0 x 2,3 x 1,4 30,00 34,60 5,90 7,30 0,25 010.1A296 30,00 x 3,00
008.032036
Standard request
 32,0 x 2,0 x 1,4 32,00 36,00 5,00 6,40 0,25 010.1A211 31,42 x 2,62
008.032366
Standard request
 32,0 x 2,3 x 1,4 32,00 36,60 5,90 7,30 0,25 010.1BE67 32,00 x 3,00
008.035039
Standard request
 35,0 x 2,0 x 1,4 35,00 39,00 5,00 6,40 0,25 010.1A213 34,59 x 2,62
008.035396
Standard request
 35,0 x 2,3 x 1,4 35,00 39,60 5,90 7,30 0,25 010.1A303 35,00 x 3,00
008.036040
Standard request
 36,0 x 2,0 x 1,4 36,00 40,00 5,00 6,40 0,25 010.1A214 36,17 x 2,62
008.036406
Standard request
 36,0 x 2,3 x 1,4 36,00 40,60 5,90 7,30 0,25 010.1A304 36,00 x 3,00
008.040454
Standard request
 40,0 x 2,7 x 1,4 40,00 45,40 6,50 7,90 0,25 010.1A382 40,87 x 3,53
008.040461
Standard request
 40,0 x 3,1 x 1,7 40,00 46,10 7,30 9,00 0,25 010.1BS39 40,00 x 4,00
008.042474
Standard request
 42,0 x 2,7 x 1,4 42,00 47,40 6,50 7,90 0,25 010.1A382 40,87 x 3,53
008.042482
Standard request
 42,0 x 3,1 x 1,7 42,00 48,20 7,30 9,00 0,25 010.1BS45 42,00 x 4,00
008.045504
Standard request
 45,0 x 2,7 x 1,4 45,00 50,40 6,50 7,90 0,25 010.1A385 44,04 x 3,53
008.045512
Standard request
 45,0 x 3,1 x 1,7 45,00 51,20 7,30 9,00 0,25 010.1BS54 45,00 x 4,00
008.048534
Standard request
 48,0 x 2,7 x 1,4 48,00 53,40 6,50 7,90 0,25 010.1A388 47,22 x 3,53
008.048542
Standard request
 48,0 x 3,1 x 1,7 48,00 54,20 7,30 9,00 0,25 010.1BS63 48,00 x 4,00
008.050554
Standard request
 50,0 x 2,7 x 1,4 50,00 55,40 6,50 7,90 0,25 010.1A391 50,39 x 3,53
008.050562
Standard request
 50,0 x 3,1 x 1,7 50,00 56,20 7,30 9,00 0,25 010.1BS66 50,00 x 4,00
008.052574
Standard request
 52,0 x 2,7 x 1,4 52,00 57,40 6,50 7,90 0,25 010.1A391 50,39 x 3,53
008.052582
Standard request
 52,0 x 3,1 x 1,7 52,00 58,20 7,30 9,00 0,25 010.1BS72 52,00 x 4,00
008.055604
Standard request
 55,0 x 2,7 x 1,4 55,00 60,40 6,50 7,90 0,25 010.1A394 53,57 x 3,53
008.055612
Standard request
 55,0 x 3,1 x 1,7 55,00 61,20 7,30 9,00 0,25 010.1A480 55,00 x 4,00
008.056614
Standard request
 56,0 x 2,7 x 1,4 56,00 61,40 6,50 7,90 0,25 010.1A397 56,74 x 3,53
008.056622
Standard request
 56,0 x 3,1 x 1,7 56,00 62,20 7,30 9,00 0,25 010.1BS84 56,00 x 4,00
008.060654
Standard request
 60,0 x 2,7 x 1,4 60,00 65,40 6,50 7,90 0,25 010.1A400 59,92 x 3,53
008.060662
Standard request
 60,0 x 3,1 x 1,7 60,00 66,20 7,30 9,00 0,25 010.1A481 60,00 x 4,00
008.063684
Standard request
 63,0 x 2,7 x 1,4 63,00 68,40 6,50 7,90 0,25 010.1A403 63,09 x 3,53
008.063692
Standard request
 63,0 x 3,1 x 1,7 63,00 69,20 7,30 9,00 0,25 010.1A481 60,00 x 4,00
008.065704
Standard request
 65,0 x 2,7 x 1,4 65,00 70,40 6,50 7,90 0,25 010.1A406 66,27 x 3,53
008.065712
Standard request
 65,0 x 3,1 x 1,7 65,00 71,20 7,30 9,00 0,25 010.06544 65,40 x 4,00
008.070754
Standard request
 70,0 x 2,7 x 1,4 70,00 75,40 6,50 7,90 0,25 010.1A409 69,44 x 3,53
008.070762
Standard request
 70,0 x 3,1 x 1,7 70,00 76,20 7,30 9,00 0,25 010.1A484 70,00 x 4,00
008.075804
Standard request
 75,0 x 2,7 x 1,4 75,00 80,40 6,50 7,90 0,25 010.1A415 75,79 x 3,53
008.075812
Standard request
 75,0 x 3,1 x 1,7 75,00 81,20 7,30 9,00 0,25 010.1A485 75,00 x 4,00
008.080088
Standard request
 80,0 x 4,0 x 1,7 80,00 88,00 8,40 10,10 0,25 010.1BK53 80,00 x 5,00
008.080936
Standard request
 80,0 x 4,3 x 1,7 80,00 93,60 8,80 10,50 0,25 010.1A560 81,92 x 5,33
008.085886
Standard request
 85,0 x 4,0 x 1,7 85,00 88,60 8,40 10,10 0,25 010.1BK59 85,00 x 5,00
008.085093
Standard request
 85,0 x 4,3 x 1,7 85,00 93,00 8,80 10,50 0,25 010.1A561 85,09 x 5,33
008.090098
Standard request
 90,0 x 4,0 x 1,7 90,00 98,00 8,40 10,10 0,25 010.1BK68 90,00 x 5,00
008.090986
Standard request
 90,0 x 4,3 x 1,7 90,00 98,60 8,80 10,50 0,25 010.1A564 91,44 x 5,33
008.095103
Standard request
 95,0 x 4,0 x 1,7 95,00 103,00 8,40 10,10 0,25 010.1BK77 95,00 x 5,00
008.095104
Standard request
 95,0 x 4,3 x 1,7 95,00 103,60 8,80 10,50 0,25 010.1A565 94,62 x 5,33
008.100108
Standard request
 100,0 x 4,0 x 1,7 100,00 108,00 8,40 10,10 0,25 010.1BK86 100,00 x 5,00
008.100109
Standard request
 100,0 x 4,3 x 1,7 100,00 108,60 8,80 10,50 0,25 010.1A568 100,97 x 5,33
008.105113
Standard request
 105,0 x 4,0 x 1,7 105,00 113,00 8,40 10,10 0,25 010.1BK98 105,00 x 5,00
008.105114
Standard request
 105,0 x 4,3 x 1,7 105,00 113,60 8,80 10,50 0,25 010.1A569 104,14 x 5,33
008.110118
Standard request
 110,0 x 4,0 x 1,7 110,00 118,00 8,40 10,10 0,25 010.1BW07 110,00 x 5,00
008.110119
Standard request
 110,0 x 4,3 x 1,7 110,00 118,60 8,80 10,50 0,25 010.1A572 110,49 x 5,33
008.115123
Standard request
 115,0 x 4,0 x 1,7 115,00 123,00 8,40 10,10 0,25 010.1BW16 115,00 x 5,00
008.115124
Standard request
 115,0 x 4,3 x 1,7 115,00 123,60 8,80 10,50 0,25 010.1A573 113,67 x 5,33
008.120128
Standard request
 120,0 x 4,0 x 1,7 120,00 128,00 8,40 10,10 0,25 010.1A489 120,00 x 5,00
008.120129
Standard request
 120,0 x 4,3 x 1,7 120,00 128,60 8,80 10,50 0,25 010.1A576 120,02 x 5,33
008.125133
Standard request
 125,0 x 4,0 x 1,7 125,00 133,00 8,40 10,10 0,25 010.1A490 125,00 x 5,00
008.125134
Standard request
 125,0 x 4,3 x 1,7 125,00 133,60 8,80 10,50 0,25 010.1A580 126,37 x 5,33
008.130138
Standard request
 130,0 x4,0 x 1,7 130,00 138,00 8,40 10,10 0,25 010.1A491 130,00 x 5,00
008.130139
Standard request
 130,0 x 4,3 x 1,7 130,00 138,60 8,80 10,50 0,25 010.1A582 129,54 x 5,33
008.135146
Standard request
 135,0 x 5,8 x 2,5 135,00 146,60 11,80 14,30 0,25 010.1A748 135,89 x 6,99
008.140151
Standard request
 140,0 x 5,8 x 2,5 140,00 151,60 11,80 14,30 0,25 010.1A749 139,07 x 6,99
008.150161
Standard request
 150,0 x 5,8 x 2,5 150,00 161,60 11,80 14,30 0,25 010.1A753 151,77 x 6,99
008.160171
Standard request
 160,0 x 5,8 x 2,5 160,00 171,60 11,80 14,30 0,25 010.1A755 158,12 x 6,99
008.170181
Standard request
 170,0 x 5,8 x 2,5 170,00 181,60 11,80 14,30 0,25 010.1A761 170,82 x 6,99
008.180191
Standard request
 180,0 x 5,8 x 2,5 180,00 191,60 11,80 14,30 0,25 010.1A765 183,52 x 6,99
008.190201
Standard request
 190,0 x 5,8 x 2,5 190,00 201,60 11,80 14,30 0,25 010.1A767 189,87 x 6,99
008.200211
Standard request
 200,0 x 5,8 x 2,5 200,00 211,60 11,80 14,30 0,25 010.1A771 202,57 x 6,99
008.210221
Standard request
 210,0 x 5,8 x 2,5 210,00 221,60 11,80 14,30 0,25 010.1A773 215,27 x 6,99
008.220231
Standard request
 220,0 x 5,8 x 2,5 220,00 231,60 11,80 14,30 0,25 010.1A773 215,27 x 6,99
008.230241
Standard request
 230,0 x 5,8 x 2,5 230,00 241,60 11,80 14,30 0,25 010.1A775 227,97 x 6,99
008.240251
Standard request
 240,0 x 5,8 x 2,5 240,00 251,60 11,80 14,30 0,25 010.1A777 240,67 x 6,99
008.250261
Standard request
 250,0 x 5,8 x 2,5 250,00 261,60 11,80 14,30 0,25 010.1A779 253,37 x 6,99
008.280291
Standard request
 280,0 x 5,8 x 2,5 280,00 291,60 11,80 14,30 0,25 010.1A783 278,77 x 6,99
008.300311
Standard request
 300,0 x 5,8 x 2,5 300,00 311,60 11,80 14,30 0,25 010.1A787 304,17 x 6,99
008.320331
Standard request
 320,0 x 5,8 x 2,5 320,00 331,60 11,80 14,30 0,25 010.1A788 316,87 x 6,99
 1 2
