BECA 012 Rod

BECA 012 Rod
BECA 012

Description

The BECA 012 Rod profile is a spiral back-up ring with a rectangular profile. The ring is systematically assembled in tandem with an O'Ring or an X'Ring. An uncut version of this profile can be made.

Advantages

Used in static and dynamic applications
Only for alternating movements
Large contact surface area, which protects the O'Ring from deformation caused by pulsating pressures
Preferred assembled in a closed groove
Suitable for non-standard dimensions as the back-up ring can be shortened and then adjusted
Compensates for the effects caused by significant thermal variations and tolerances, as at least one coil in the spiral rests on each point of the circumference to support the O'Ring against play

Technical data

Temperature

-200°C/+260°C

Pressure

< 250 MPa in static applications
< 40 MPa in alternating applications

Speed

2 m/s in alternating applications

Medias

The majority of liquids, or gaseous or chemical fluids.

Applications

Automotive
Hydraulic equipment
Mobile machinery
Machine tools
Injection presses
Valves
Hydraulic cylinders

Materials

Standard virgin PTFE
Filled PTFE (fibreglass, carbon, bronze)
Other materials may be used

Dimensions
Materials
Design guidelines

Dimensions

012.004062, 012.004067, 012.005072, 012.005077, 012.006082, 012.006087, 012.008107, 012.008111, 012.010127, 012.010131, 012.012147, 012.012151, 012.014167, 012.014171, 012.015177, 012.015181, 012.016187, 012.016191, 012.018207, 012.018211, 012.020227, 012.020231, 012.022261, 012.022268, 012.025291, 012.025298, 012.028321, 012.028328, 012.030341, 012.030348, 012.032361, 012.032368, 012.035391, 012.035398, 012.036401, 012.036408, 012.040457, 012.040465, 012.042477, 012.042451, 012.045507, 012.045515, 012.048537, 012.048545, 012.050557, 012.050565, 012.052577, 012.052585, 012.055607, 012.055615, 012.056617, 012.056625, 012.060657, 012.060665, 012.063687, 012.063695, 012.065707, 012.065715, 012.070757, 012.070765, 012.075807, 012.075815, 012.080882, 012.080888, 012.085932, 012.085938, 012.090982, 012.090988, 012.095103, 012.095104, 012.100108, 012.100109, 012.105113, 012.105114, 012.110118, 012.110119, 012.115123, 012.115124, 012.120128, 012.120129, 012.125133, 012.125134, 012.130138, 012.130139, 012.135146, 012.140151, 012.150161, 012.160171, 012.170181, 012.180191, 012.190201, 012.200211, 012.210221, 012.220231, 012.230241, 012.240251, 012.250261, 012.280291, 012.300311, 012.320331, 012.350361, 012.360371, 012.400411

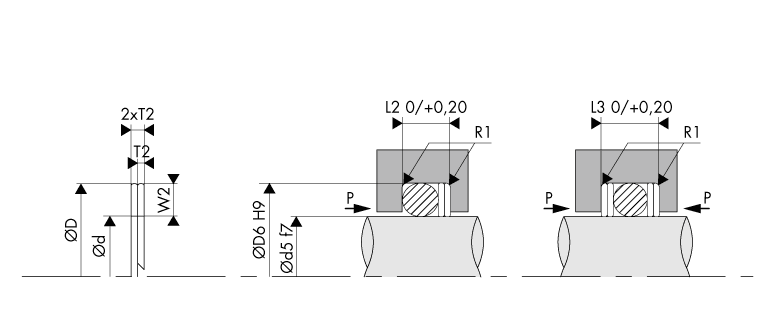

Installation drawingLogement Gorge Bague anti-extrusion - Housing Groove Back-up ring - BECA 012

Materials

PTFE is a thermoplastic polymer made of tetrafluoroethylene with exceptional properties - very low friction coefficient (adhesive friction and sliding friction are almost equal), physiologically safe for temperatures up to +200°C, excellent electrical insulation properties, and excellent chemical compatibility with the majority of fluids. On the other hand, as this material is plastic and not elastic, so it cannot easily replace rubber bases.

Material Code
Virgin PTFE P
Bronze-filled PTFE B
Carbon-filled PTFE C
Fibreglass-filled PTFE V

Design guidelines

Housing Groove - BECA 012 Rod

Installation dimensions in static and dynamic applications - Internal (rod) sealing only.

O'Ring Back-up ring Housing dimensions Radius
Cross-section
Ød2		 Radial height
W2		 Thickness Rod sealing Groove width
Groove diameter
ØD6 H9		 Static Dynamic
static dynamic 2xT2 static dynamic L2 0/+0.20 L3 0/+0.20 L2 0/+020 L3 0/+0.20 R1 ±0.20
1.50 1.10 1.10 1.00 d5 + 2.20 d5 + 2.20 3.20 4.20 3.25 4.25 0.25
1.60 1.15 1.20 1.00 d5 + 2.30 d5 + 2.40 3.50 4.50 3.40 4.40 0.25
1.78 1.30 1.35 1.40 d5 + 2.60 d5 + 2.70 4.10 5.50 4.00 5.40 0.25
1.80 1.30 1.35 1.40 d5 + 2.60 d5 + 2.70 4.10 5.50 4.00 5.40 0.25
2.00 1.50 1.55 1.40 d5 + 3.00 d5 + 3.10 4.30 5.70 4.20 5.60 0.25
2.40 1.80 1.90 1.40 d5 + 3.60 d5 + 3.80 4.80 6.20 4.60 6.00 0.25
2.50 1.90 1.95 1.40 d5 + 3.80 d5 + 3.90 4.90 6.30 4.80 6.20 0.25
2.62 2.00 2.05 1.40 d5 + 4.00 d5 + 4.10 5.00 6.40 4.90 6.30 0.25
2.65 2.00 2.10 1.40 d5 + 4.00 d5 + 4.20 5.10 6.50 4.90 6.30 0.25
3.00 2.30 2.40 1.40 d5 + 4.60 d5 + 4.80 5.90 7.30 5.70 7.10 0.25
3.53 2.70 2.85 1.40 d5 + 5.40 d5 + 5.70 6.50 7.90 6.30 7.70 0.25
3.55 2.70 2.90 1.40 d5 + 5.40 d5 + 5.80 6.60 8.00 6.30 7.70 0.25
4.00 3.10 3.25 1.40 d5 + 6.20 d5 + 6.50 7.00 8.40 6.80 8.20 0.25
5.00 4.00 4.10 1.70 d5 + 8.00 d5 + 8.20 8.40 10.10 8.30 10.00 0.25
5.30 4.30 4.40 1.70 d5 + 8.60 d5 + 8.80 8.60 10.30 8.50 10.20 0.25
5.33 4.30 4.40 1.70 d5 + 8.60 d5 + 8.80 8.80 10.50 8.50 10.20 0.25
5.70 4.60 4.80 1.70 d5 + 9.20 d5 + 9.60 9.10 10.80 8.80 10.50 0.25
6.00 4.90 5.10 1.70 d5 + 9.80 d5 + 10.20 9.50 11.20 9.10 10.80 0.25
6.99 5.80 5.90 2.50 d5 + 11.60 d5 + 11.80 11.80 14.30 11.70 14.20 0.25
8.00 6.70 7.00 2.50 d5 + 13.40 d5 + 14.00 12.70 15.20 12.40 14.90 0.25
8.40 7.10 7.30 2.50 d5 + 14.20 d5 + 14.60 13.00 15.50 12.80 15.30 0.25
103 dimensions found
012.004062
Standard request
 4,0 x 1,10 x 0,50 4,00 6,20 3,25 4,25 0,25 010.1B171 4,00 x 1,50
012.004067
Standard request
 4,0 x 1,35 x 0,70 4,00 6,70 4,00 5,40 0,25 010.1A040 3,68 x 1,78
012.005072
Standard request
 5,0 x 1,10 x 0,50 5,00 7,20 3,25 4,25 0,25 010.1B177 5,00 x 1,50
012.005077
Standard request
 5,0 x 1,35 x 0,70 5,00 7,70 4,00 5,40 0,25 010.1A041 4,47 x 1,78
012.006082
Standard request
 6,0 x 1,10 x 0,50 6,00 8,20 3,25 4,25 0,25 010.1B183 6,00 x 1,50
012.006087
Standard request
 6,0 x 1,35 x 0,70 6,00 8,70 4,00 5,40 0,25 010.1A043 6,07 x 1,78
012.008107
Standard request
 8,0 x 1,35 x 0,70 8,00 10,70 4,00 5,40 0,25 010.1A046 7,65 x 1,78
012.008111
Standard request
 8,0 x 1,55 x 0,70 8,00 11,10 4,20 5,60 0,25 010.1B486 8,00 x 2,00
012.010127
Standard request
 10,0 x 1,35 x 0,70 10,00 12,70 4,00 5,40 0,25 010.1A050 10,82 x 1,78
012.010131
Standard request
 10,0 x 1,55 x 0,70 10,00 13,10 4,20 5,60 0,25 010.1B492 10,00 x 2,00
012.012147
Standard request
 12,0 x 1,35 x 0,70 12,00 14,70 4,00 5,40 0,25 010.1A052 12,42 x 1,78
012.012151
Standard request
 12,0 x 1,55 x 0,70 12,00 15,10 4,20 5,60 0,25 010.1B498 12,00 x 2,00
012.014167
Standard request
 14,0 x 1,35 x 0,70 14,00 16,70 4,00 5,40 0,25 010.1A053 14,00 x 1,78
012.014171
Standard request
 14,0 x 1,55 x 0,70 14,00 17,10 4,20 5,60 0,25 010.1B510 14,00 x 2,00
012.015177
Standard request
 15,0 x 1,35 x 0,70 15,00 17,70 4,00 5,40 0,25 010.1A054 15,60 x 1,78
012.015181
Standard request
 15,0 x 1,55 x 0,70 15,00 18,10 4,20 5,60 0,25 010.1B516 15,00 x 2,00
012.016187
Standard request
 16,0 x 1,35 x 0,70 16,00 18,70 4,00 5,40 0,25 010.1A054 15,60 x 1,78
012.016191
Standard request
 16,0 x 1,55 x 0,70 16,00 19,10 4,20 5,60 0,25 010.1B519 16,00 x 2,00
012.018207
Standard request
 18,0 x 1,35 x 0,70 18,00 20,70 4,00 5,40 0,25 010.1A056 18,77 x 1,78
012.018211
Standard request
 18,0 x 1,55 x 0,70 18,00 21,10 4,20 5,60 0,25 010.1B525 18,00 x 2,00
012.020227
Standard request
 20,0 x 1,35 x 0,70 20,00 22,70 4,00 5,40 0,25 010.1A057 20,35 x 1,78
012.020231
Standard request
 20,0 x 1,55 x 0,70 20,00 23,10 4,20 5,60 0,25 010.1B531 20,00 x 2,00
012.022261
Standard request
 22,0 x 2,05 x 0,70 22,00 26,10 4,90 6,30 0,25 010.1A203 21,89 x 2,62
012.022268
Standard request
 22,0 x 2,40 x 0,70 22,00 26,80 5,70 7,10 0,25 010.1BE19 22,00 x 3,00
012.025291
Standard request
 25,0 x 2,05 x 0,70 25,00 29,10 4,90 6,30 0,25 010.1A207 25,07 x 2,62
012.025298
Standard request
 25,0 x 2,40 x 0,70 25,00 29,80 5,70 7,10 0,25 010.1A289 25,00 x 3,00
012.028321
Standard request
 28,0 x 2,05 x 0,70 28,00 32,10 4,90 6,30 0,25 010.1A209 28,24 x 2,62
012.028328
Standard request
 28,0 x 2,40 x 0,70 28,00 32,80 5,70 7,10 0,25 010.1BE46 28,00 x 3,00
012.030341
Standard request
 30,0 x 2,05 x 0,70 30,00 34,10 4,90 6,30 0,25 010.1A210 29,82 x 2,62
012.030348
Standard request
 30,0 x 2,40 x 0,70 30,00 34,80 5,70 7,10 0,25 010.1A296 30,00 x 3,00
012.032361
Standard request
 32,0 x 2,05 x 0,70 32,00 36,10 4,90 6,30 0,25 010.1A211 31,42 x 2,62
012.032368
Standard request
 32,0 x 2,40 x 0,70 32,00 36,80 5,70 7,10 0,25 010.1BE67 32,00 x 3,00
012.035391
Standard request
 35,0 x 2,05 x 0,70 35,00 39,10 4,90 6,30 0,25 010.1A206 223,81 x 2,62
012.035398
Standard request
 35,0 x 2,40 x 0,70 35,00 39,80 5,70 7,10 0,25 010.1A303 35,00 x 3,00
012.036401
Standard request
 36,0 x 2,05 x 0,70 36,00 40,10 4,90 6,30 0,25 010.1A214 36,17 x 2,62
012.036408
Standard request
 36,0 x 2,40 x 0,70 36,00 40,80 5,70 7,10 0,25 010.1A304 36,00 x 3,00
012.040457
Standard request
 40,0 x 2,85 x 0,70 40,00 45,70 6,30 7,70 0,25 010.1A382 40,87 x 3,53
012.040465
Standard request
 40,0 x 3,25 x 0,85 40,00 46,50 7,10 8,80 0,25 010.1BS39 40,00 x 4,00
012.042477
Standard request
 42,0 x 2,85 x 0,70 42,00 47,70 6,30 7,70 0,25 010.1A382 40,87 x 3,53
012.042451
Standard request
 42,0 x 1,55 x 0,70 42,00 45,10 4,20 5,60 0,25 010.1B600 42,00 x 2,00
012.045507
Standard request
 45,0 x 2,85 x 0,70 45,00 50,70 6,30 7,70 0,25 010.1A385 44,04 x 3,53
012.045515
Standard request
 45,0 x 3,25 x 0,85 45,00 51,50 7,10 8,80 0,25 010.1BS54 45,00 x 4,00
012.048537
Standard request
 48,0 x 2,85 x 0,70 48,00 53,70 6,30 7,70 0,25 010.1A388 47,22 x 3,53
012.048545
Standard request
 48,0 x 3,25 x 0,85 48,00 54,50 7,10 8,80 0,25 010.1BS63 48,00 x 4,00
012.050557
Standard request
 50,0 x 2,85 x 0,70 50,00 55,70 6,30 7,70 0,25 010.1A391 50,39 x 3,53
012.050565
Standard request
 50,0 x 3,25 x 0,85 50,00 56,50 7,10 8,80 0,25 010.1BS66 50,00 x 4,00
012.052577
Standard request
 52,0 x 2,85 x 0,70 52,00 57,70 6,30 7,70 0,25 010.1A391 50,39 x 3,53
012.052585
Standard request
 52,0 x 3,25 x 0,85 52,00 58,50 7,10 8,80 0,25 010.1BS72 52,00 x 4,00
012.055607
Standard request
 55,0 x 2,85 x 0,70 55,00 60,70 6,30 7,70 0,25 010.1A394 53,57 x 3,53
012.055615
Standard request
 55,0 x 3,25 x 0,85 55,00 61,50 7,10 8,80 0,25 010.1A480 55,00 x 4,00
012.056617
Standard request
 56,0 x 2,85 x 0,70 56,00 61,70 6,30 7,70 0,25 010.1A397 56,74 x 3,53
012.056625
Standard request
 56,0 x 3,25 x 0,85 56,00 62,50 7,10 8,80 0,25 010.1BS84 56,00 x 4,00
012.060657
Standard request
 60,0 x 2,85 x 0,70 60,00 65,70 6,30 7,70 0,25 010.1A400 59,92 x 3,53
012.060665
Standard request
 60,0 x 3,25 x 0,85 60,00 66,50 7,10 8,80 0,25 010.1A481 60,00 x 4,00
012.063687
Standard request
 63,0 x 2,85 x 0,70 63,00 68,70 6,30 7,70 0,25 010.1A403 63,09 x 3,53
012.063695
Standard request
 63,0 x 3,25 x 0,85 63,00 69,50 7,10 8,80 0,25 010.1A482 63,00 x 4,00
012.065707
Standard request
 65,0 x 2,85 x 0,70 65,00 70,70 6,30 7,70 0,25 010.1A406 66,27 x 3,53
012.065715
Standard request
 65,0 x 3,25 x 0,85 65,00 71,50 7,10 8,80 0,25 010.1A483 65,00 x 4,00
012.070757
Standard request
 70,0 x 2,85 x 0,70 70,00 75,70 6,30 7,70 0,25 010.1A409 69,44 x 3,53
012.070765
Standard request
 70,0 x 3,25 x 0,85 70,00 76,50 7,10 8,80 0,25 010.1A484 70,00 x 4,00
012.075807
Standard request
 75,0 x 2,85 x 0,70 75,00 80,70 6,30 7,70 0,25 010.1A415 75,79 x 3,53
012.075815
Standard request
 75,0 x 3,25 x 0,85 75,00 81,50 7,10 8,80 0,25 010.1A485 75,00 x 4,00
012.080882
Standard request
 80,0 x 4,10 x 0,85 80,00 88,20 8,30 10,00 0,25 010.1BK53 80,00 x 5,00
012.080888
Standard request
 80,0 x 4,40 x 0,85 80,00 88,80 8,50 10,20 0,25 010.1A560 81,92 x 5,33
012.085932
Standard request
 85,0 x 4,10 x 0,85 85,00 93,20 8,30 10,00 0,25 010.1BK59 85,00 x 5,00
012.085938
Standard request
 85,0 x 4,40 x 0,85 85,00 93,80 8,50 10,20 0,25 010.1A561 85,09 x 5,33
012.090982
Standard request
 90,0 x 4,10 x 0,85 90,00 98,20 8,30 10,00 0,25 010.1BK68 90,00 x 5,00
012.090988
Standard request
 90,0 x 4,40 x 0,85 90,00 98,80 8,50 10,20 0,25 010.1A564 91,44 x 5,33
012.095103
Standard request
 95,0 x 4,10 x 0,85 95,00 103,20 8,30 10,00 0,25 010.1BK77 95,00 x 5,00
012.095104
Standard request
 95,0 x 4,40 x 0,85 95,00 103,80 8,50 10,20 0,25 010.1A565 94,62 x 5,33
012.100108
Standard request
 100,0 x 4,10 x 0,85 100,00 108,20 8,30 10,00 0,25 010.1BK86 100,00 x 5,00
012.100109
Standard request
 100,0 x 4,40 x 0,85 100,00 108,80 8,50 10,20 0,25 010.1A568 100,97 x 5,33
012.105113
Standard request
 105,0 x 4,10 x 0,85 105,00 113,20 8,30 10,00 0,25 010.1BK98 105,00 x 5,00
012.105114
Standard request
 105,0 x 4,40 x 0,85 105,00 113,80 8,50 10,20 0,25 010.1A569 104,14 x 5,33
012.110118
Standard request
 110,0 x 4,10 x 0,85 110,00 118,20 8,30 10,00 0,25 010.1BW07 110,00 x 5,00
012.110119
Standard request
 110,0 x 4,40 x 0,85 110,00 118,80 8,50 10,20 0,25 010.1A572 110,49 x 5,33
012.115123
Standard request
 115,0 x 4,10 x 0,85 115,00 123,20 8,30 10,00 0,25 010.1BW16 115,00 x 5,00
012.115124
Standard request
 115,0 x 4,40 x 0,85 115,00 123,80 8,50 10,20 0,25 010.1A573 113,67 x 5,33
012.120128
Standard request
 120,0 x 4,10 x 0,85 120,00 128,20 8,30 10,00 0,25 010.1A489 120,00 x 5,00
012.120129
Standard request
 120,0 x 4,40 x 0,85 120,00 128,80 8,50 10,20 0,25 010.1A576 120,02 x 5,33
012.125133
Standard request
 125,0 x 4,10 x 0,85 125,00 133,20 8,30 10,00 0,25 010.1A490 125,00 x 5,00
012.125134
Standard request
 125,0 x 4,40 x 0,85 125,00 133,80 8,50 10,20 0,25 010.1A580 126,37 x 5,33
012.130138
Standard request
 130,0 x 4,10 x 0,85 130,00 138,20 8,30 10,00 0,25 010.1A491 130,00 x 5,00
012.130139
Standard request
 130,0 x 4,40 x 0,85 130,00 138,80 8,50 10,20 0,25 010.1A582 129,54 x 5,33
012.135146
Standard request
 135,0 x 5,90 x 1,25 135,00 146,80 11,70 14,20 0,25 010.1A748 135,89 x 6,99
012.140151
Standard request
 140,0 x 5,90 x 1,25 140,00 151,80 11,70 14,20 0,25 010.1A749 139,07 x 6,99
012.150161
Standard request
 150,0 x 5,90 x 1,25 150,00 161,80 11,70 14,20 0,25 010.1A753 151,77 x 6,99
012.160171
Standard request
 160,0 x 5,90 x 1,25 160,00 171,80 11,70 14,20 0,25 010.1A755 158,12 x 6,99
012.170181
Standard request
 170,0 x 5,90 x 1,25 170,00 181,80 11,70 14,20 0,25 010.1A761 170,82 x 6,99
012.180191
Standard request
 180,0 x 5,90 x 1,25 180,00 191,80 11,70 14,20 0,25 010.1A765 183,52 x 6,99
012.190201
Standard request
 190,0 x 5,90 x 1,25 190,00 201,80 11,70 14,20 0,25 010.1A767 189,87 x 6,99
012.200211
Standard request
 200,0 x 5,90 x 1,25 200,00 211,80 11,70 14,20 0,25 010.1A771 202,57 x 6,99
012.210221
Standard request
 210,0 x 5,90 x 1,25 210,00 221,80 11,70 14,20 0,25 010.1A773 215,27 x 6,99
012.220231
Standard request
 220,0 x 5,90 x 1,25 220,00 231,80 11,70 14,20 0,25 010.1A773 215,27 x 6,99
012.230241
Standard request
 230,0 x 5,90 x 1,25 230,00 241,80 11,70 14,20 0,25 010.1A775 227,97 x 6,99
012.240251
Standard request
 240,0 x 5,90 x 1,25 240,00 251,80 11,70 14,20 0,25 010.1A777 240,67 x 6,99
012.250261
Standard request
 250,0 x 5,90 x 1,25 250,00 261,80 11,70 14,20 0,25 010.1A779 253,37 x 6,99
012.280291
Standard request
 280,0 x 5,90 x 1,25 280,00 291,80 11,70 14,20 0,25 010.1A783 278,77 x 6,99
012.300311
Standard request
 300,0 x 5,90 x 1,25 300,00 311,80 11,70 14,20 0,25 010.1A787 304,17 x 6,99
012.320331
Standard request
 320,0 x 5,90 x 1,25 320,00 331,80 11,70 14,20 0,25 010.1A788 316,87 x 6,99
 1 2
