Description
The BECA 461 profile is a single acting wiper seal composed of a polyurethane wiping lip.
Advantages
Good external wiping effect
Excellent abrasion and wear resistance
Easy assembly by deformation
Technical data
| Temperature | -30°C/+110°C |
|---|---|
| Speed | 1 m/s |
| Medias | Mineral hydraulic oils |
Applications
Agriculture
Mobile machinery
Material handling - Lifting
Hydraulic cylinders
Materials
PU 93 Shore A - Blue
PU 96 Shore A - Blue
High temp. PU 96 Shore A - Beige
Dimensions
Materials
Technical data
Dimensions

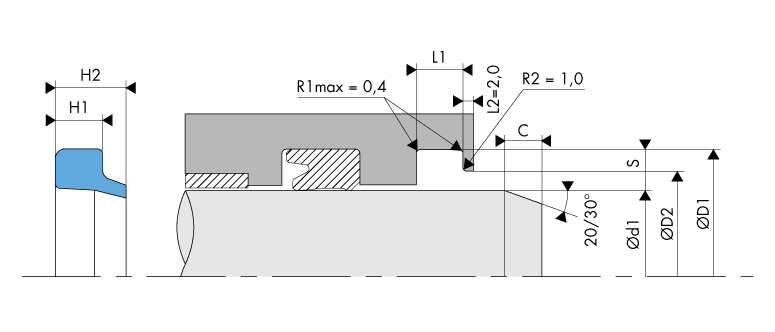

Installation drawing
Materials
PU
Polyurethane is a material that has the elastic properties of rubber. The proportion in its composition (diisocyanate, polyol, chain extender) is determined by its properties. This material is characterised by a strong mechanical resistance, good wear resistance, high elastic modulus, good flexibility and a very good ozone and oxidation resistance.
| Chemical resistance | Pure aliphatic hydrocarbons (propane, butane) Mineral oils and greases Silicone oils and greases Water up to +50°C |
|---|---|
| Compatibility issue | Ketones, esters, ethers, alcohols and glycols Hot water, steam, alkalis, amines and acids |
| Temperature range | -30°C/+90°C -30°C / +110°C with our PUHT (short term peak at 150°C) |
Technical data
Surface roughness
| Roughness | Dynamic surface area | Static surface area | Groove flanks |
|---|---|---|---|
| Ra | 0.1 - 0.4 µm | ≤ 1.6 µm | ≤ 3.2 µm |
| Rz | 0.63 - 2.5 µm | ≤ 6.3 µm | ≤ 10.0 µm |
| Rmax | 1.0 - 4.0 µm | ≤ 10.0 µm | ≤ 16.0 µm |
Chamfer
The chamfer length as well as the chamfer angle are determined by the rod seal.
90 dimensions found
|
