BECA 475
Description
The BECA 475 profile is a single acting wiper seal with a polyurethane metal cage.
Advantages
Tight and precise fitting in the housing
Very good external wiping effect
Excellent abrasion and wear resistance
Technical data
| Temperature | -30°C/+110°C |
|---|---|
| Speed | 1 m/s |
| Medias | Mineral hydraulic oils |
Applications
Agriculture
Mobile machinery
Material handling - Lifting
Hydraulic cylinders
Materials
Profiled seal
PU 94 Shore A - White
Metal cage
Steel

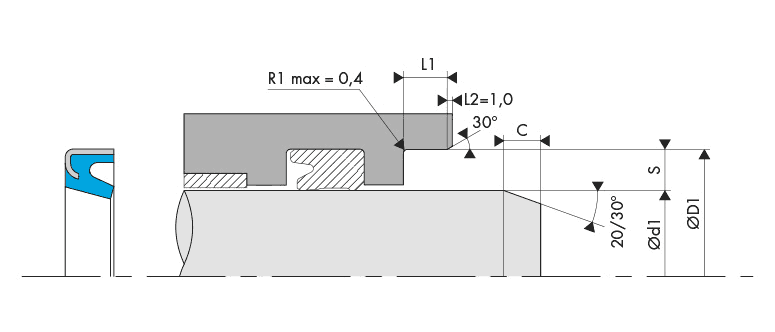

Dimensions
Materials
Metal cage
The table below shows the materials that we can offer for metal cages and springs.
| Application | Material | Standard | Characteristics |
|---|---|---|---|
| Metal cage | Non-alloy standard steel | AISI 1010 (DIN 1624) |
Cold rolled steel |
| Metal cage | Nickel chrome steel | AISI 304 (DIN 1.4301 - V2A) |
Standard stainless steel |
PU
Polyurethane is a material that has the elastic properties of rubber. The proportion in its composition (diisocyanate, polyol, chain extender) is determined by its properties. This material is characterised by a strong mechanical resistance, good wear resistance, high elastic modulus, good flexibility and a very good ozone and oxidation resistance.
| Chemical resistance | Pure aliphatic hydrocarbons (propane, butane) Mineral oils and greases Silicone oils and greases Water up to +50°C |
|---|---|
| Compatibility issue | Ketones, esters, ethers, alcohols and glycols Hot water, steam, alkalis, amines and acids |
| Temperature range | -30°C/+90°C -30°C / +110°C with our PUHT |
Technical data
Surface roughness
| Roughness | Dynamic surface area | Static surface area | Groove flanks |
|---|---|---|---|
| Ra | 0.1 - 0.4 µm | ≤ 1.6 µm | ≤ 3.2 µm |
| Rz | 0.63 - 2.5 µm | ≤ 6.3 µm | ≤ 10.0 µm |
| Rmax | 1.0 - 4.0 µm | ≤ 10.0 µm | ≤ 16.0 µm |
Chamfer
The chamfer length as well as the chamfer angle are determined by the rod seal.
|
475.0300404
|
30,00 | 40,00 | 4,00 |
|
475.0300406
|
30,00 | 40,00 | 6,00 |
|
475.0350454
|
35,00 | 45,00 | 4,00 |
|
475.0350456
|
35,00 | 45,00 | 6,00 |
|
475.0350509
|
35,00 | 50,00 | 9,00 |
|
475.0360467
|
36,00 | 46,00 | 7,00 |
|
475.0400504
|
40,00 | 50,00 | 4,00 |
|
475.0400505
|
40,00 | 50,00 | 5,00 |
|
475.0400508
|
40,00 | 50,00 | 8,00 |
|
475.0400526
|
40,00 | 52,00 | 6,00 |
|
475.0400559
|
40,00 | 55,00 | 9,00 |
|
475.0450553
|
45,00 | 55,00 | 3,20 |
|
475.0450554
|
45,00 | 55,00 | 4,00 |
|
475.0450555
|
45,00 | 55,00 | 5,00 |
|
475.0450607
|
45,00 | 60,00 | 7,50 |
|
475.0500603
|
50,00 | 60,00 | 3,20 |
|
475.0500605
|
50,00 | 60,00 | 5,00 |
|
475.0500634
|
50,00 | 63,00 | 4,00 |
|
475.0500655
|
50,00 | 65,00 | 5,00 |
|
475.0500657
|
50,00 | 65,00 | 7,50 |
|
475.0500659
|
50,00 | 65,00 | 9,00 |
|
475.0550653
|
55,00 | 65,00 | 3,20 |
|
475.0550655
|
55,00 | 65,00 | 5,00 |
|
475.0550705
|
55,00 | 70,00 | 5,00 |
|
475.0550707
|
55,00 | 70,00 | 7,50 |
|
475.0560719
|
56,00 | 71,00 | 9,00 |
|
475.0600705
|
60,00 | 70,00 | 5,00 |
|
475.0600748
|
60,00 | 74,00 | 8,00 |
|
475.0600754
|
60,00 | 75,00 | 4,20 |
|
475.0600755
|
60,00 | 75,00 | 5,00 |
|
475.0600757
|
60,00 | 75,00 | 7,50 |
|
475.0600758
|
60,00 | 75,00 | 8,00 |
|
475.0600751
|
60,00 | 75,00 | 10,00 |
|
475.0630789
|
63,00 | 78,00 | 9,00 |
|
475.0650755
|
65,00 | 75,00 | 5,00 |
|
475.0650798
|
65,00 | 79,00 | 8,00 |
|
475.0650805
|
65,00 | 80,00 | 5,00 |
|
475.0700805
|
70,00 | 80,00 | 5,00 |
|
475.0700807
|
70,00 | 80,00 | 7,00 |
|
475.0700848
|
70,00 | 84,00 | 8,00 |
|
475.0700855
|
70,00 | 85,00 | 5,00 |
|
475.0700857
|
70,00 | 85,00 | 7,00 |
|
475.0700858
|
70,00 | 85,00 | 8,00 |
|
475.0700851
|
70,00 | 85,00 | 10,00 |
|
475.0710865
|
71,00 | 86,00 | 5,00 |
|
475.0750855
|
75,00 | 85,00 | 5,00 |
|
475.0750898
|
75,00 | 89,00 | 8,00 |
|
475.0750908
|
75,00 | 90,00 | 8,00 |
|
475.0800903
|
80,00 | 90,00 | 3,20 |
|
475.0800948
|
80,00 | 94,00 | 8,00 |
|
475.0800954
|
80,00 | 95,00 | 4,00 |
|
475.0800955
|
80,00 | 95,00 | 5,00 |
|
475.0800958
|
80,00 | 95,00 | 8,00 |
|
475.0850954
|
85,00 | 95,00 | 4,50 |
|
475.0850998
|
85,00 | 99,00 | 8,00 |
|
475.0901007
|
90,00 | 100,00 | 7,00 |
|
475.0901048
|
90,00 | 104,00 | 8,00 |
|
475.0901056
|
90,00 | 105,00 | 6,00 |
|
475.0901058
|
90,00 | 105,00 | 8,00 |
|
475.0951056
|
95,00 | 105,00 | 6,00 |
|
475.0951098
|
95,00 | 109,00 | 8,00 |
|
475.0951106
|
95,00 | 110,00 | 6,50 |
|
475.1001148
|
100,00 | 114,00 | 8,00 |
|
475.1001157
|
100,00 | 115,00 | 7,00 |
|
475.1001158
|
100,00 | 115,00 | 8,00 |
|
475.1101258
|
110,00 | 125,00 | 8,00 |
|
475.1101304
|
110,00 | 130,00 | 4,50 |
|
475.1201358
|
120,00 | 135,00 | 8,00 |
|
475.1251408
|
125,00 | 140,00 | 8,00 |
