BECA 390
BECA 390
Description
The BECA 390 profile is a polyurethane pneumatic cushioning seal.
Advantages
Effective and consistent damping effect with automatic centring
Technical data
| Temperature | -30°C/+110°C |
|---|---|
| Pressure | 1.6 MPa |
| Speed | 1 m/s |
| Medias | Lubricated air |
Applications
Shock absorbers
Distributor
Standard cylinders
Materials
PU 93 Shore A - Blue
PU 96 Shore A - Blue
High temp. PU 96 Shore A - Beige
Dimensions
Materials
Technical data
Dimensions

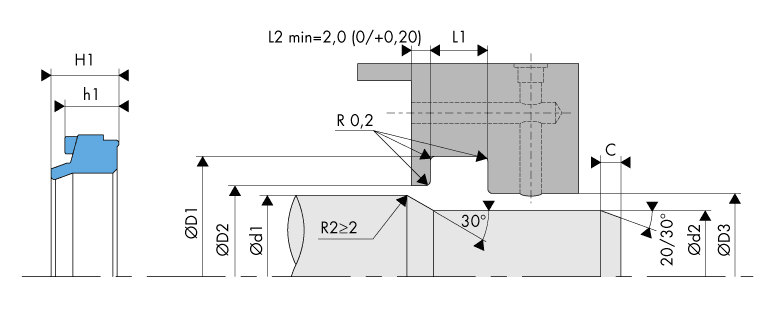

Installation drawing
Materials
PU
Polyurethane is a material that has the elastic properties of rubber. The proportion in its composition (diisocyanate, polyol, chain extender) is determined by its properties. This material is characterised by a strong mechanical resistance, good wear resistance, high elastic modulus, good flexibility and a very good ozone and oxidation resistance.
| Chemical resistance | Pure aliphatic hydrocarbons (propane, butane) Mineral oils and greases Silicone oils and greases Water up to +50°C |
|---|---|
| Compatibility issue | Ketones, esters, ethers, alcohols and glycols Hot water, steam, alkalis, amines and acids |
| Temperature range | -30°C/+90°C -30°C / +110°C with our PUHT |
Technical data
Surface roughness
| Roughness | Dynamic surface area | Static surface area | Groove flanks |
|---|---|---|---|
| Ra | 0.1 - 0.4 µm | ≤ 1.6 µm | ≤ 3.2 µm |
| Rz | 0.63 - 2.5 µm | ≤ 6.3 µm | ≤ 10.0 µm |
| Rmax | 1.0 - 4.0 µm | ≤ 10.0 µm | ≤ 16.0 µm |
22 dimensions found
|
390.0950154
|
9,50 | 8,00 | 15,00 | 12,00 | 10,00 | 5,00 | 4,00 | 5,00 |
|
390.0120185
|
12,00 | 10,00 | 18,00 | 15,50 | 13,00 | 5,00 | 4,10 | 4,80 |
|
390.0120207
|
12,00 | 10,00 | 20,00 | 17,00 | 13,00 | 7,80 | 6,30 | 7,00 |
|
390.0140225
|
14,00 | 12,00 | 22,00 | 18,50 | 15,00 | 5,50 | 4,50 | 5,20 |
|
390.0140227
|
14,00 | 12,00 | 22,00 | 19,00 | 15,00 | 7,80 | 6,30 | 7,00 |
|
390.0160225
|
16,00 | 14,00 | 22,00 | 19,50 | 17,00 | 5,50 | 4,50 | 5,20 |
|
390.0160247
|
16,00 | 14,00 | 24,00 | 21,00 | 17,00 | 7,80 | 6,30 | 7,00 |
|
390.0180267
|
18,00 | 16,00 | 26,00 | 23,00 | 19,00 | 7,80 | 6,30 | 7,00 |
|
390.0200287
|
20,00 | 17,50 | 28,00 | 24,00 | 21,00 | 7,80 | 6,30 | 7,00 |
|
390.0220307
|
22,00 | 19,50 | 30,00 | 26,00 | 23,00 | 7,80 | 6,30 | 7,00 |
|
390.0240327
|
24,00 | 22,50 | 32,00 | 28,00 | 25,00 | 7,80 | 6,30 | 7,00 |
|
390.0250337
|
25,00 | 23,50 | 33,00 | 29,00 | 26,00 | 7,80 | 6,30 | 7,00 |
|
390.0280367
|
28,00 | 25,50 | 36,00 | 32,00 | 29,00 | 7,80 | 6,30 | 7,00 |
|
390.0300407
|
30,00 | 27,50 | 40,00 | 35,00 | 31,50 | 7,80 | 6,20 | 7,00 |
|
390.0320427
|
32,00 | 29,00 | 42,00 | 37,00 | 33,50 | 7,80 | 6,20 | 7,00 |
|
390.0340447
|
34,00 | 31,00 | 44,00 | 39,00 | 35,50 | 7,80 | 6,30 | 7,00 |
|
390.0360467
|
36,00 | 33,00 | 46,00 | 41,00 | 37,50 | 7,80 | 6,20 | 7,00 |
|
390.0400507
|
40,00 | 37,00 | 50,00 | 45,00 | 41,50 | 7,80 | 6,20 | 7,00 |
|
390.0450557
|
45,00 | 42,00 | 55,00 | 50,00 | 46,50 | 7,80 | 6,30 | 7,00 |
|
390.0500607
|
50,00 | 47,00 | 60,00 | 55,00 | 51,50 | 7,80 | 6,20 | 7,00 |
|
390.0500671
|
50,00 | 47,00 | 67,00 | 58,00 | 51,50 | 9,50 | 10,00 | 10,50 |
|
390.0570741
|
57,00 | 54,00 | 74,00 | 65,00 | 60,00 | 9,50 | 10,00 | 10,50 |
