BECA 880
beca_880_3d_v1
beca_880_3d_v2

Description

The BECA 880 profile is a machined, U-ring type filled or virgin PTFE shaft seal, pre-stressed by a stainless steel insert. It is generally used for helical applications.
Derived from the BECA 880 profile, the BECA 889 profile is made specially for food industry applications. It is characterised by a silicone overmoulding on the inside of the seal, which completely hides the V-shaped spring, thus preventing impurities from accumulating in this hard-to-clean area.

Advantages

It is suitable for static, rotating and oscillatory systems
Protects against the effects of mechanical twisting
Low friction coefficient
Excellent abrasion resistance
Suitable for a wide temperature range
Special profiles for the medical, food industry and pharmaceutical sectors

Technical data

Temperature

-100°C/+260°C

Pressure

In static applications : 25 MPa
In dynamic applications: 15 MPa

Speed

2 m/s

Medias

The majority of fluids
Gaseous fluids
Chemical products

Applications

Food & Beverage
Medical
Pharmaceutical
General industry

Materials

Profiled seal

Virgin PTFE
Carbon-filled PTFE

Metal insert

Stainless steel

Dimensions
Installation dimensions
Materials
Technical data

Dimensions

880.005, 880.1006, 880.1008, 880.1010, 880.1012, 880.1014, 880.1015, 880.1016, 880.1018, 880.2020, 880.2022, 880.2025, 880.2028, 880.2030, 880.2032, 880.2035, 880.2036, 880.2038, 880.3040, 880.3042, 880.3045, 880.3048, 880.3050, 880.3052, 880.3055, 880.3056, 880.3058, 880.3060, 880.3062, 880.3063, 880.3065, 880.3068, 880.3070, 880.3075, 880.3080, 880.3085, 880.3090, 880.3095, 880.3100, 880.3105, 880.3110, 880.3115, 880.3120, 880.3125, 880.3130, 880.3135, 880.3140, 880.3145, 880.3150, 880.3155, 880.3160, 880.3165, 880.3170, 880.3175, 880.3180, 880.3185, 880.3190, 880.3195, 880.3200, 880.3205, 880.3210, 880.3215, 880.3220, 880.3230, 880.3240, 880.3250, 880.3260, 880.3270, 880.3280, 880.3290, 880.3300, 880.3310, 880.3320, 880.3330, 880.3340, 880.3350, 880.3360, 880.3370, 880.3380, 880.3390, 880.4400, 880.4450, 880.4500, 880.4550, 880.4600, 880.4650, 880.4700, 880.4750, 880.4800, 880.4850, 880.4900, 880.4950

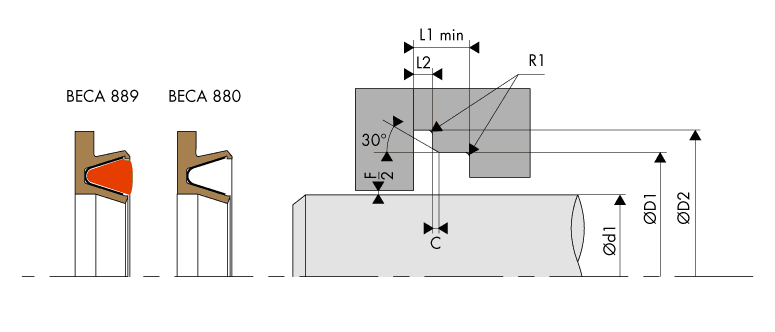

Installation drawingLogement Gorge Joint hélicoïdal en PTFE - Housing Groove PTFE helicoidal seal - BECA 880 - 889

Installation dimensions

Housing Groove PTFE Helicoidal Seal - BECA 880 - 889

Series Rod diameter
Ød1 f8/h9		 Groove diameter Groove width Chamfer Radius
BECA 880
Standard series		 BECA 880
Extended series		 ØD1 H9 ØD2 H10 L1 min L2 C R
880.1 5.0 - 19.9 20.0 - 200.0 d1 + 5.00 d1 + 9.00 3.60 0.85 0/-0.10 0.80 0.30
880.2 20.0 - 39.9 20.0 - 400.0 d1 + 7.00 d1 + 12.50 4.80 1.35 0/-0.15 1.10 0.40
880.3 40.0 - 399.9 320.0 - 700.0 d1 + 10.50 d1 + 17.50 7.10 1.80 0/-0.20 1.40 0.50
880.4 400.0 - 999.9 35.0 - 999.9 d1 + 14.00 d1 + 22.00 9.50 2.80 0/-0.20 1.60 0.60

Materials

Housing Groove PTFE Helicoidal Seal - BECA 880 - 889

Profiled seal Metal insert Service temperature Contact surface area
Code Type of material Colour Code Type of material in °C Type of material
DP Virgin PTFE White I AISI 301 -100°C/+260°C Steel, stainless steel, chrome steel, aluminium, bronze, cast iron, treated surface
DC 25% carbon-filled PTFE Grey I AISI 301 -100°C/+260°C Steel, stainless steel, chrome steel, aluminium, bronze, cast iron, treated surface
K2 20% ekonol-filled PTFE Light brown I AISI 301 -100°C/+260°C Steel, stainless steel, chrome steel, aluminium, bronze, cast iron, treated surface
DG 15% graphite-filled PTFE Black I AISI 301 -100°C/+260°C Steel, stainless steel, chrome steel, aluminium, bronze, cast iron, treated surface
DG 15% graphite-filled PTFE Black I AISI 301 -100°C/+260°C Steel, stainless steel, chrome steel, aluminium, bronze, cast iron, treated surface

Technical data

Housing Groove PTFE Helicoidal Seal - BECA 880 - 889

Shaft hardness

We recommend achieving a minimum hardness of 55 HRC for the correct operation of the BECA 880 seal while rotating.

Surface roughness

Fluids Dynamic surface area Static surface area Groove flanks
High and low viscosity fluids Ra = 0.2 µm Ra = 0.8 µm Ra = 0.8 µm
Rz = 1.6 µm Rz = 5.0 µm Rz = 5.0 µm
Rmax = 2.5 µm Rmax = 6.5 µm Rmax = 6.5 µm
Gaseous fluids Ra = 0.1 µm Ra = 0.3 µm Ra = 0.3 µm
Rz = 0.63 µm Rz = 2.2 µm Rz = 2.2 µm
Rmax = 1.0 µm Rmax = 3.5 µm Rmax = 3.5 µm

Chamfers and radius

Series Chamfer
C
880.1 4.5
880.2 5.0
880.3 8.0
880.4 12.0
92 dimensions found
880.005
Standard request
 5,00 8,40 11,40 2,40 0,60
880.1006
Standard request
 6,00 11,00 15,00 3,60 0,85
880.1008
Standard request
 8,00 13,00 17,00 3,60 0,85
880.1010
Standard request
 10,00 15,00 19,00 3,60 0,85
880.1012
Standard request
 12,00 17,00 21,00 3,60 0,85
880.1014
Standard request
 14,00 19,00 23,00 3,60 0,85
880.1015
Standard request
 15,00 20,00 24,00 3,60 0,85
880.1016
Standard request
 16,00 21,00 25,00 3,60 0,85
880.1018
Standard request
 18,00 23,00 27,00 3,60 0,85
880.2020
Standard request
 20,00 27,00 32,50 4,80 1,35
880.2022
Standard request
 22,00 29,00 34,50 4,80 1,35
880.2025
Standard request
 25,00 32,00 37,50 4,80 1,35
880.2028
Standard request
 28,00 35,00 40,50 4,80 1,35
880.2030
Standard request
 30,00 37,00 42,50 4,80 1,35
880.2032
Standard request
 32,00 39,00 44,50 4,80 1,35
880.2035
Standard request
 35,00 42,00 47,50 4,80 1,35
880.2036
Standard request
 36,00 43,00 48,50 4,80 1,35
880.2038
Standard request
 38,00 45,00 50,50 4,80 1,35
880.3040
Standard request
 40,00 50,50 57,50 7,10 1,80
880.3042
Standard request
 42,00 52,50 59,50 7,10 1,80
880.3045
Standard request
 45,00 55,50 62,50 7,10 1,80
880.3048
Standard request
 48,00 58,50 65,50 7,10 1,80
880.3050
Standard request
 50,00 60,50 67,50 7,10 1,80
880.3052
Standard request
 52,00 62,50 69,50 7,10 1,80
880.3055
Standard request
 55,00 65,50 72,50 7,10 1,80
880.3056
Standard request
 56,00 66,50 73,50 7,10 1,80
880.3058
Standard request
 58,00 68,50 75,50 7,10 1,80
880.3060
Standard request
 60,00 70,50 77,50 7,10 1,80
880.3062
Standard request
 62,00 72,50 79,50 7,10 1,80
880.3063
Standard request
 63,00 73,50 80,50 7,10 1,80
880.3065
Standard request
 65,00 75,50 82,50 7,10 1,80
880.3068
Standard request
 68,00 78,50 85,50 7,10 1,80
880.3070
Standard request
 70,00 80,50 87,50 7,10 1,80
880.3075
Standard request
 75,00 85,50 92,50 7,10 1,80
880.3080
Standard request
 80,00 90,50 97,50 7,10 1,80
880.3085
Standard request
 85,00 95,50 102,50 7,10 1,80
880.3090
Standard request
 90,00 100,50 107,50 7,10 1,80
880.3095
Standard request
 95,00 105,50 112,50 7,10 1,80
880.3100
Standard request
 100,00 110,50 117,50 7,10 1,80
880.3105
Standard request
 105,00 115,50 122,50 7,10 1,80
880.3110
Standard request
 110,00 120,50 127,50 7,10 1,80
880.3115
Standard request
 115,00 125,50 132,50 7,10 1,80
880.3120
Standard request
 120,00 130,50 137,50 7,10 1,80
880.3125
Standard request
 125,00 135,50 142,50 7,10 1,80
880.3130
Standard request
 130,00 140,50 147,50 7,10 1,80
880.3135
Standard request
 135,00 145,50 152,50 7,10 1,80
880.3140
Standard request
 140,00 150,50 157,50 7,10 1,80
880.3145
Standard request
 145,00 155,50 162,50 7,10 1,80
880.3150
Standard request
 150,00 160,50 167,50 7,10 1,80
880.3155
Standard request
 155,00 165,50 172,50 7,10 1,80
880.3160
Standard request
 160,00 170,50 177,50 7,10 1,80
880.3165
Standard request
 165,00 175,50 182,50 7,10 1,80
880.3170
Standard request
 170,00 180,50 187,50 7,10 1,80
880.3175
Standard request
 175,00 185,50 192,50 7,10 1,80
880.3180
Standard request
 180,00 190,50 197,50 7,10 1,80
880.3185
Standard request
 185,00 195,50 202,50 7,10 1,80
880.3190
Standard request
 190,00 200,50 207,50 7,10 1,80
880.3195
Standard request
 195,00 205,50 212,50 7,10 1,80
880.3200
Standard request
 200,00 210,50 217,50 7,10 1,80
880.3205
Standard request
 205,00 215,50 222,50 7,10 1,80
880.3210
Standard request
 210,00 220,50 227,50 7,10 1,80
880.3215
Standard request
 215,00 225,50 232,50 7,10 1,80
880.3220
Standard request
 220,00 230,50 237,50 7,10 1,80
880.3230
Standard request
 230,00 240,50 247,50 7,10 1,80
880.3240
Standard request
 240,00 250,50 257,50 7,10 1,80
880.3250
Standard request
 250,00 260,50 267,50 7,10 1,80
880.3260
Standard request
 260,00 270,50 277,50 7,10 1,80
880.3270
Standard request
 270,00 280,50 287,50 7,10 1,80
880.3280
Standard request
 280,00 290,50 297,50 7,10 1,80
880.3290
Standard request
 290,00 300,50 307,50 7,10 1,80
880.3300
Standard request
 300,00 310,50 317,50 7,10 1,80
880.3310
Standard request
 310,00 320,50 327,50 7,10 1,80
880.3320
Standard request
 320,00 330,50 337,50 7,10 1,80
880.3330
Standard request
 330,00 340,50 347,50 7,10 1,80
880.3340
Standard request
 340,00 350,50 357,50 7,10 1,80
880.3350
Standard request
 350,00 360,50 367,50 7,10 1,80
880.3360
Standard request
 360,00 370,50 377,50 7,10 1,80
880.3370
Standard request
 370,00 380,50 387,50 7,10 1,80
880.3380
Standard request
 380,00 390,50 397,50 7,10 1,80
880.3390
Standard request
 390,00 400,50 407,50 7,10 1,80
880.4400
Standard request
 400,00 414,00 422,00 9,50 2,80
880.4450
Standard request
 450,00 464,00 472,00 9,50 2,80
880.4500
Standard request
 500,00 514,00 522,00 9,50 2,80
880.4550
Standard request
 550,00 564,00 572,00 9,50 2,80
880.4600
Standard request
 600,00 614,00 622,00 9,50 2,80
880.4650
Standard request
 650,00 664,00 672,00 9,50 2,80
880.4700
Standard request
 700,00 714,00 722,00 9,50 2,80
880.4750
Standard request
 750,00 764,00 772,00 9,50 2,80
880.4800
Standard request
 800,00 814,00 822,00 9,50 2,80
880.4850
Standard request
 850,00 864,00 872,00 9,50 2,80
880.4900
Standard request
 900,00 914,00 922,00 9,50 2,80
880.4950
Standard request
 950,00 964,00 972,00 9,50 2,80
