BECA 001QR
BECA 001QR
Description
The BECA 001QR profile is a Quad'Ring (or X'Ring), and offers the same advantages as O'Rings (BECA 010).
Advantages
No fitting direction
Reduced friction compared to O'Rings
Reduced start-up effort
Limited size
No twisting
Technical data
| Temperature | -60°C/+200°C |
|---|---|
| Pressure | In static applications |
| Speed | 0.5 m/sin alternating applications |
| Medias | The majority of liquids, or gaseous or chemical fluids, depending on the type of material selected. Refer to our fluids-materials compatibility guide. |
Applications
Hydraulic systems
Pneumatic systems
Hydropneumatic systems
Materials
ACM 70 Shore A
AEM 70 Shore A
EPDM 70 Shore A
FKM 70 Shore A
HNBR 70 Shore A
NBR 70 Shore A
VMQ 70 Shore A
Dimensions
Materials
Design recommendations
Dimensions

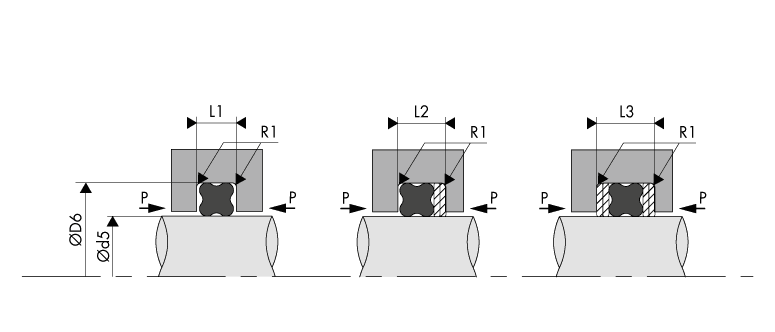

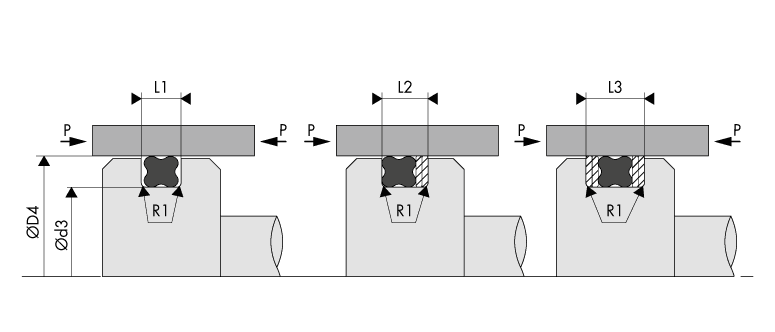

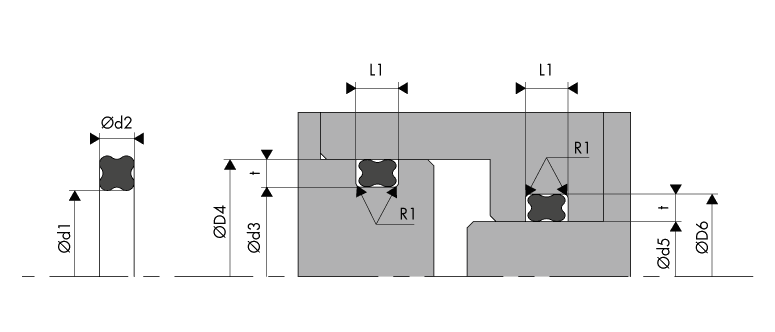

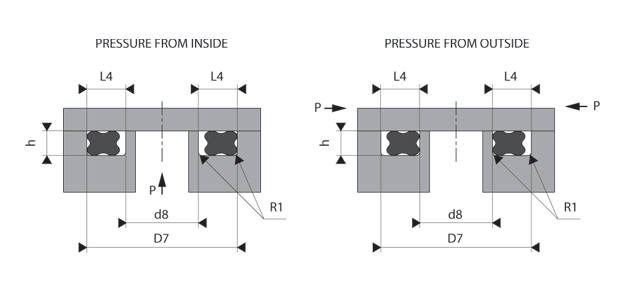

Installation drawing
Materials
NBR (Nitrile Butadiene Rubber)
Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.
| Chemical resistance | Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel) Mineral oils and greases Fire-resistant fluids (HFA, HFB and HFC) Diluted acids, low-temperature alkaline and saline solutions Water (up to +100°C max) |
|---|---|
| Compatibility issue | Fuels with high aromatic content Aromatic hydrocarbons (benzene) Chlorinated hydrocarbons (trichlorethylene) Polar solvents (ketone, acetone, acetic acid, ethylene-ester) Strong acids Glycol-based brake fluids Atmospheric and ozone agents |
| Temperature range | -30°C / +100°C (short-term peak at +120°C) -40°C / +100°C with particular NBRs |
FKM (fluorinated rubber)
Depending on their structure and fluorine content, the chemical resistance and resistance to the cold in fluororubbers can vary. This FKM-based rubber is very often used for high-temperature hydraulics and pneumatics, for industrial valves, injection/fuel systems, motor seals and high-vacuum systems.
| Chemical resistance | Mineral oils and greases, ASTM n°1, IRM 902 and IRM 903 oils. Fire-resistant liquids (HFD) Silicone oils and greases Mineral and vegetable oils and greases Aliphatic hydrocarbons (propane, butane, petroleum) Aromatic hydrocarbons (benzene, toluene) Chlorinated hydrocarbons (trichlorethylene) Fuel (including high alcohol content) Atmospheric and ozone agents |
|---|---|
| Compatibility issue | Glycol-based brake fluids Ammonia gas Organic acids with a low molecular weight (formic and acetic acids) |
| Temperature range | -20°C / +200°C (short-term peak at +230°C) -40°C / +200°C with particular FKMs |
EPDM (Ethylene Propylene Diene Monomer rubber)
As an Ethylene Propylene Diene Monomer copolymer, EPDM is commonly used for hot water taps, cooling systems, brake systems, dishwashers and washing machines.
| Chemical resistance | Hot water and steam up to +150°C Glycol-based brake fluids (Dot 3 & 4) and silicone-based brake fluids (Dot 5) Organic and inorganic acids Cleaning agents, sodium and potassium alkalis Hydraulic fluids (HFD-R) Silicone oils and greases Polar solvents (alcohols, ketones and esters) Atmospheric and ozone agents |
|---|---|
| Compatibility issue | Mineral oils and greases Hydrocarbons Low impermeability to gas |
| Temperature range | -45°C / +150°C (short-term peak at +175°C) |
HNBR (Hydrogenated Nitrile Butadiene Rubber)
This HNBR-based rubber is obtained through selective hydrogenation of the NBR's butadiene groups. It is commonly used for power-assisted steering and for air conditioning.
| Chemical resistance | Aliphatic hydrocarbons Mineral and vegetable oils and greases Fire-resistant fluids (HFA, HFB and HFC) Diluted acids, saline solutions and bases for operation at an average temperature Water and steam up to +150°C Atmospheric and ozone agents |
|---|---|
| Compatibility issue | Chlorinated hydrocarbons Polar solvents (ketones, esters and ethers) Strong acids |
| Temperature range | -30°C / +150°C (short-term peak at +160°C) -40°C / +150°C with particular HNBRs |
VMQ (silicone rubber: methyl vinyl polysiloxane)
This FVMQ-based rubber is very often used in fuel systems.
| Chemical resistance | Animal and vegetable oils and greases Water for operation at an average temperature Diluted saline solutions Atmospheric and ozone agents |
|---|---|
| Compatibility issue | Superheated steam up to +120°C Chlorinated hydrocarbons with a low molecular weight (trichlorethylene) Aromatic hydrocarbons (benzene, toluene) |
| Temperature range | -60°C / +200°C (short-term peak at +230°C) |
FVMQ (fluorosilicone rubber)
The FVMQ has mechanical and physical properties that are very similar to those of the VMQ. However, the FVMQ offers better resistance to fuels and mineral oils. However, resistance to hot air is not as good as that of the VMQ.
| Chemical resistance | Aromatic mineral oils (IRM 903 oil) Fuels Aromatic hydrocarbons with low molecular weights (benzene, toluene) |
|---|---|
| Temperature range | -70°C/+175°C |
ACM (Polyacrylate)
Polymers containing ethyl acrylate (or butyl acrylate) have a small amount of monomer, which is necessary for cross-linking; ACM is a material with better heat resistance than NBR. It is often used for automatic gearboxes.
| Chemical resistance | Mineral oils (motor oils, gear box oils, ATF oils) Atmospheric and ozone agents |
|---|---|
| Compatibility issue | Glycol-based brake fluids (Dot 3 & 4) Aromatic and chlorinated hydrocarbons Water and steam Acids, alkalis and amines |
| Temperature range | -25°C to + 150°C (short-term peak at +160°C) -35°C / +150°C with particular ACMs |
AEM (ethylene acrylate rubber)
As a methyl acrylate and ethylene copolymer, AEM is considered to be more resistant to heat than ACM. Its characteristics make it an intermediary between ACM and FKM.
| Chemical resistance | Cooling fluids Aggressive mineral oils Atmospheric agents Water |
|---|---|
| Compatibility issue | Aromatic solvents Strong acids Brake fluids Gearbox oils ATF oils |
| Temperature range | - 40°C to + 150°C |
CR (Polychloroprene)
This CR-based rubber is used in the refrigeration industry and for ventilation systems. This chloroprene was the first synthetic rubber to be developed and marketed.
| Chemical resistance | Paraffinic mineral oils Silicone oils and greases Water and water-based solvents for use at low temperatures Refrigerant fluids Ammoniac Carbon dioxide Atmospheric and ozone agents |
|---|---|
| Limited chemical resistance | Naphthenic mineral oils Aliphatic hydrocarbons (propane, butane, petroleum) Glycol-based brake fluids |
| Compatibility issue | Aromatic hydrocarbons (benzene) Chlorinated hydrocarbons (trichlorethylene) Polar solvents (ketone, acetone, acetic acid, ethylene-ester) |
| Temperature range | -40°C / +100°C (short-term peak at +120°C) |
FFKM (perfluorinated rubber)
FFKM has the best characteristics for resistance to high temperatures, with an excellent chemical inertia. This FKM-based rubber is very often used for high-temperature hydraulic and pneumatic systems, industrial valves, injection/fuel systems, motor seals and high-vacuum systems.
| Chemical resistance | Aliphatic and aromatic hydrocarbons Polar solvents (ketones, esters and ethers) Organic and inorganic acids Water and steam High-vacuum system |
|---|---|
| Compatibility issue | Coolants (R11, R12, R13, R113, R114, etc.) PFPE |
| Temperature range | -15°C/+320°C |
The table below gives an overview of the physical, chemical and mechanical characteristics for each of the materials.
| Characteristics/Materials | ACM | AEM | CR | EPDM | FFKM | FKM | FVMQ | HNBR | NBR | VMQ |
|---|---|---|---|---|---|---|---|---|---|---|
| Abrasion resistant | 2 | 3 | 2 | 2 | 4 | 2 | 4 | 2 | 2 | 4 |
| Resistance to acids | 4 | 3 | 2 | 2 | 1 | 1 | 3 | 1 | 3 | 3 |
| Chemical resistance | 4 | 2 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| Resistance to cold | 4 | 2 | 2 | 2 | 3 | 4 | 2 | 2 | 2 | 2 |
| Dynamic properties | 3 | 3 | 3 | 2 | 3 | 2 | 4 | 1 | 2 | 4 |
| Electrical properties | 3 | 3 | 3 | 2 | 1 | 4 | 1 | 3 | 3 | 1 |
| Flame resistant | 4 | 4 | 2 | 4 | 1 | 1 | 2 | 4 | 4 | 3 |
| Heat resistant | 1 | 1 | 2 | 2 | 1 | 1 | 1 | 1 | 2 | 1 |
| Sealing water | 1 | 1 | 2 | 2 | 2 | 2 | 4 | 2 | 2 | 4 |
| Oil resistant | 1 | 3 | 2 | 4 | 1 | 1 | 2 | 1 | 1 | 2 |
| Ozone resistant | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 4 | 1 |
| Tearing resistant | 2 | 3 | 3 | 1 | 4 | 3 | 4 | 2 | 2 | 4 |
| Traction resistant | 3 | 2 | 2 | 1 | 2 | 1 | 3 | 1 | 2 | 4 |
| Water/vapour resistant | 4 | 4 | 3 | 1 | 2 | 3 | 3 | 1 | 2 | 3 |
| Resistance to atmospheric agents | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 | 1 |
1. Excellent properties 2. Good properties 3. Average properties 4. Poor properties
Chemical compatibility
A "Chemical compatibility guide" catalogue can be downloaded from the Documentation section. You can also use our online "Chemical compatibility" tool free of charge.
These two tools give you the option of measuring the behaviour of our materials that come into contact with the majority of existing fluids. The data displayed is the result of rigorous testing of the ambient temperature and in consultation with previous publications. Test results are not fully representative due to the specific features of your application. The tests performed actually do not consider additives and impurities that may exist under the actual conditions of use, nor the potential elevation of temperatures. Other parameters can also alter the behaviour of our materials, such as the hardness, persistence, abrasion, etc. We therefore recommend performing your own tests to verify the compatibility of our materials according to your specific application. Our technical team can provide you with any additional information.
Design recommendations
Tolerance on the inside diameter Ød1
The tolerances on the inside diameters Ød1 set out in the table below relate to standard ISO 3601-1:2008. If the dimensions of an X'Ring are not specified in standard ISO 3601-1:2008, we recommend that you calculate the tolerances to apply to the inside diameter Ød1 as follows:
Tolerance on Ød1 = ± [(d10′95 x 0,009) + 0,11]
| Inside diameter Ød1 |
Tol. | Inside diameter Ød1 |
Tol. | |
|---|---|---|---|---|
| 0,74 ≤ Ød1 ≤ 1,78 | ± 0,12 | 242,00 < Ød1 ≤ 244,00 | ± 1,77 | |
| 1,78 < Ød1 ≤ 3,00 | ± 0,13 | 244,00 < Ød1 ≤ 246,00 | ± 1,78 | |
| 3,00 < Ød1 ≤ 4,20 | ± 0,14 | 246,00 < Ød1 ≤ 247,00 | ± 1,79 | |
| 4,20 < Ød1 ≤ 5,50 | ± 0,15 | 247,00 < Ød1 ≤ 249,00 | ± 1,80 | |
| 5,50 < Ød1 ≤ 6,75 | ± 0,16 | 249,00 < Ød1 ≤ 250,00 | ± 1,81 | |
| 6,75 < Ød1 ≤ 8,10 | ± 0,17 | 250,00 < Ød1 ≤ 252,00 | ± 1,82 | |
| 8,10 < Ød1 ≤ 9,50 | ± 0,18 | 252,00 < Ød1 ≤ 253,00 | ± 1,83 | |
| 9,50 < Ød1 ≤ 10,69 | ± 0,19 | 253,00 < Ød1 ≤ 254,50 | ± 1,84 | |
| 10,69 < Ød1 ≤ 12,00 | ± 0,20 | 254,50 < Ød1 ≤ 256,00 | ± 1,85 | |
| 12,00 < Ød1 ≤ 13,30 | ± 0,21 | 256,00 < Ød1 ≤ 258,00 | ± 1,86 | |
| 13,30 < Ød1 ≤ 14,80 | ± 0,22 | 258,00 < Ød1 ≤ 259,00 | ± 1,87 | |
| 14,80 < Ød1 ≤ 16,00 | ± 0,23 | 259,00 < Ød1 ≤ 261,00 | ± 1,88 | |
| 16,00 < Ød1 ≤ 17,30 | ± 0,24 | 261,00 < Ød1 ≤ 263,00 | ± 1,89 | |
| 17,30 < Ød1 ≤ 18,72 | ± 0,25 | 263,00 < Ød1 ≤ 264,00 | ± 1,90 | |
| 18,72 < Ød1 ≤ 20,22 | ± 0,26 | 264,00 < Ød1 ≤ 266,00 | ± 1,91 | |
| 20,22 < Ød1 ≤ 21,50 | ± 0,27 | 266,00 < Ød1 ≤ 267,00 | ± 1,92 | |
| 21,50 < Ød1 ≤ 23,00 | ± 0,28 | 267,00 < Ød1 ≤ 269,00 | ± 1,93 | |
| 23,00 < Ød1 ≤ 24,20 | ± 0,29 | 269,00 < Ød1 ≤ 270,00 | ± 1,94 | |
| 24,20 < Ød1 ≤ 25,50 | ± 0,30 | 270,00 < Ød1 ≤ 272,00 | ± 1,95 | |
| 25,50 < Ød1 ≤ 27,00 | ± 0,31 | 272,00 < Ød1 ≤ 273,00 | ± 1,96 | |
| 27,00 < Ød1 ≤ 28,24 | ± 0,32 | 273,00 < Ød1 ≤ 274,50 | ± 1,97 | |
| 28,24 < Ød1 ≤ 29,70 | ± 0,33 | 274,50 < Ød1 ≤ 276,00 | ± 1,98 | |
| 29,70 < Ød1 ≤ 31,12 | ± 0,34 | 276,00 < Ød1 ≤ 278,00 | ± 1,99 | |
| 31,12 < Ød1 ≤ 32,50 | ± 0,35 | 278,00 < Ød1 ≤ 279,30 | ± 2,00 | |
| 32,50 < Ød1 ≤ 34,00 | ± 0,36 | 279,30 < Ød1 ≤ 281,00 | ± 2,01 | |
| 34,00 < Ød1 ≤ 35,20 | ± 0,37 | 281,00 < Ød1 ≤ 283,00 | ± 2,02 | |
| 35,20 < Ød1 ≤ 37,00 | ± 0,38 | 283,00 < Ød1 ≤ 284,00 | ± 2,03 | |
| 37,00 < Ød1 ≤ 38,00 | ± 0,39 | 284,00 < Ød1 ≤ 286,00 | ± 2,04 | |
| 38,00 < Ød1 ≤ 39,40 | ± 0,40 | 286,00 < Ød1 ≤ 287,00 | ± 2,05 | |
| 39,40 < Ød1 ≤ 40,87 | ± 0,41 | 287,00 < Ød1 ≤ 289,00 | ± 2,06 | |
| 40,87 < Ød1 ≤ 42,30 | ± 0,42 | 289,00 < Ød1 ≤ 290,00 | ± 2,07 | |
| 42,30 < Ød1 ≤ 43,70 | ± 0,43 | 290,00 < Ød1 ≤ 291,47 | ± 2,08 | |
| 43,70 < Ød1 ≤ 45,30 | ± 0,44 | 291,47 < Ød1 ≤ 293,00 | ± 2,09 | |
| 45,30 < Ød1 ≤ 46,99 | ± 0,45 | 293,00 < Ød1 ≤ 295,00 | ± 2,10 | |
| 46,99 < Ød1 ≤ 48,00 | ± 0,46 | 295,00 < Ød1 ≤ 297,00 | ± 2,11 | |
| 48,00 < Ød1 ≤ 49,30 | ± 0,47 | 297,00 < Ød1 ≤ 297,80 | ± 2,12 | |
| 49,30 < Ød1 ≤ 50,80 | ± 0,48 | 297,80 < Ød1 ≤ 299,30 | ± 2,13 | |
| 50,80 < Ød1 ≤ 52,30 | ± 0,49 | 299,30 < Ød1 ≤ 301,00 | ± 2,14 | |
| 52,30 < Ød1 ≤ 53,57 | ± 0,50 | 301,00 < Ød1 ≤ 303,00 | ± 2,15 | |
| 53,57 < Ød1 ≤ 55,00 | ± 0,51 | 303,00 < Ød1 ≤ 304,00 | ± 2,16 | |
| 55,00 < Ød1 ≤ 56,52 | ± 0,52 | 304,00 < Ød1 ≤ 306,00 | ± 2,17 | |
| 56,52 < Ød1 ≤ 58,00 | ± 0,53 | 306,00 < Ød1 ≤ 307,00 | ± 2,18 | |
| 58,00 < Ød1 ≤ 59,30 | ± 0,54 | 307,00 < Ød1 ≤ 309,00 | ± 2,19 | |
| 59,30 < Ød1 ≤ 61,00 | ± 0,55 | 309,00 < Ød1 ≤ 310,50 | ± 2,20 | |
| 61,00 < Ød1 ≤ 62,30 | ± 0,56 | 310,50 < Ød1 ≤ 312,00 | ± 2,21 | |
| 62,30 < Ød1 ≤ 64,00 | ± 0,57 | 312,00 < Ød1 ≤ 314,00 | ± 2,22 | |
| 64,00 < Ød1 ≤ 65,10 | ± 0,58 | 314,00 < Ød1 ≤ 315,00 | ± 2,23 | |
| 65,10 < Ød1 ≤ 66,60 | ± 0,59 | 315,00 < Ød1 ≤ 316,87 | ± 2,24 | |
| 66,60 < Ød1 ≤ 67,95 | ± 0,60 | 316,87 < Ød1 ≤ 318,00 | ± 2,25 | |
| 67,95 < Ød1 ≤ 69,40 | ± 0,61 | 318,00 < Ød1 ≤ 319,50 | ± 2,26 | |
| 69,40 < Ød1 ≤ 71,00 | ± 0,62 | 319,50 < Ød1 ≤ 321,50 | ± 2,27 | |
| 71,00 < Ød1 ≤ 72,39 | ± 0,63 | 321,50 < Ød1 ≤ 323,00 | ± 2,28 | |
| 72,39 < Ød1 ≤ 74,00 | ± 0,64 | 323,00 < Ød1 ≤ 325,00 | ± 2,29 | |
| 74,00 < Ød1 ≤ 75,57 | ± 0,65 | 325,00 < Ød1 ≤ 326,00 | ± 2,30 | |
| 75,57 < Ød1 ≤ 77,00 | ± 0,66 | 326,00 < Ød1 ≤ 328,00 | ± 2,31 | |
| 77,00 < Ød1 ≤ 78,50 | ± 0,67 | 328,00 < Ød1 ≤ 329,00 | ± 2,32 | |
| 78,50 < Ød1 ≤ 79,60 | ± 0,68 | 329,00 < Ød1 ≤ 331,00 | ± 2,33 | |
| 79,60 < Ød1 ≤ 81,00 | ± 0,69 | 331,00 < Ød1 ≤ 332,00 | ± 2,34 | |
| 81,00 < Ød1 ≤ 82,50 | ± 0,70 | 332,00 < Ød1 ≤ 334,00 | ± 2,35 | |
| 82,50 < Ød1 ≤ 84,00 | ± 0,71 | 334,00 < Ød1 ≤ 335,90 | ± 2,36 | |
| 84,00 < Ød1 ≤ 86,00 | ± 0,72 | 335,90 < Ød1 ≤ 337,00 | ± 2,37 | |
| 86,00 < Ød1 ≤ 87,00 | ± 0,73 | 337,00 < Ød1 ≤ 339,00 | ± 2,38 | |
| 87,00 < Ød1 ≤ 88,49 | ± 0,74 | 339,00 < Ød1 ≤ 340,00 | ± 2,39 | |
| 88,49 < Ød1 ≤ 90,00 | ± 0,75 | 340,00 < Ød1 ≤ 342,00 | ± 2,40 | |
| 90,00 < Ød1 ≤ 91,44 | ± 0,76 | 342,00 < Ød1 ≤ 343,00 | ± 2,41 | |
| 91,44 < Ød1 ≤ 93,00 | ± 0,77 | 343,00 < Ød1 ≤ 345,00 | ± 2,42 | |
| 93,00 < Ød1 ≤ 94,30 | ± 0,78 | 345,00 < Ød1 ≤ 347,00 | ± 2,43 | |
| 94,30 < Ød1 ≤ 96,00 | ± 0,79 | 347,00 < Ød1 ≤ 348,00 | ± 2,44 | |
| 96,00 < Ød1 ≤ 97,50 | ± 0,80 | 348,00 < Ød1 ≤ 350,00 | ± 2,45 | |
| 97,50 < Ød1 ≤ 99,00 | ± 0,81 | 350,00 < Ød1 ≤ 351,00 | ± 2,46 | |
| 99,00 < Ød1 ≤ 100,50 | ± 0,82 | 351,00 < Ød1 ≤ 353,00 | ± 2,47 | |
| 100,50 < Ød1 ≤ 101,60 | ± 0,83 | 353,00 < Ød1 ≤ 354,00 | ± 2,48 | |
| 101,60 < Ød1 ≤ 103,00 | ± 0,84 | 354,00 < Ød1 ≤ 356,00 | ± 2,49 | |
| 103,00 < Ød1 ≤ 104,50 | ± 0,85 | 356,00 < Ød1 ≤ 358,00 | ± 2,50 | |
| 104,50 < Ød1 ≤ 106,00 | ± 0,86 | 358,00 < Ød1 ≤ 359,00 | ± 2,51 | |
| 106,00 < Ød1 ≤ 107,54 | ± 0,87 | 359,00 < Ød1 ≤ 361,00 | ± 2,52 | |
| 107,54 < Ød1 ≤ 109,00 | ± 0,88 | 361,00 < Ød1 ≤ 362,00 | ± 2,53 | |
| 109,00 < Ød1 ≤ 110,49 | ± 0,89 | 362,00 < Ød1 ≤ 364,00 | ± 2,54 | |
| 110,49 < Ød1 ≤ 112,00 | ± 0,90 | 364,00 < Ød1 ≤ 365,00 | ± 2,55 | |
| 112,00 < Ød1 ≤ 113,67 | ± 0,91 | 365,00 < Ød1 ≤ 367,00 | ± 2,56 | |
| 113,67 < Ød1 ≤ 115,00 | ± 0,92 | 367,00 < Ød1 ≤ 369,00 | ± 2,57 | |
| 115,00 < Ød1 ≤ 116,84 | ± 0,93 | 369,00 < Ød1 ≤ 370,00 | ± 2,58 | |
| 116,84 < Ød1 ≤ 118,00 | ± 0,94 | 370,00 < Ød1 ≤ 372,00 | ± 2,59 | |
| 118,00 < Ød1 ≤ 119,30 | ± 0,95 | 372,00 < Ød1 ≤ 373,00 | ± 2,60 | |
| 119,30 < Ød1 ≤ 121,00 | ± 0,96 | 373,00 < Ød1 ≤ 374,50 | ± 2,61 | |
| 121,00 < Ød1 ≤ 123,00 | ± 0,97 | 374,50 < Ød1 ≤ 376,00 | ± 2,62 | |
| 123,00 < Ød1 ≤ 123,83 | ± 0,98 | 376,00 < Ød1 ≤ 378,00 | ± 2,63 | |
| 123,83 < Ød1 ≤ 126,00 | ± 0,99 | 378,00 < Ød1 ≤ 379,30 | ± 2,64 | |
| 126,00 < Ød1 ≤ 126,72 | ± 1,00 | 379,30 < Ød1 ≤ 381,00 | ± 2,65 | |
| 126,72 < Ød1 ≤ 129,00 | ± 1,01 | 381,00 < Ød1 ≤ 383,00 | ± 2,66 | |
| 129,00 < Ød1 ≤ 129,77 | ± 1,02 | 383,00 < Ød1 ≤ 384,00 | ± 2,67 | |
| 129,77 < Ød1 ≤ 131,50 | ± 1,03 | 384,00 < Ød1 ≤ 386,00 | ± 2,68 | |
| 131,50 < Ød1 ≤ 132,72 | ± 1,04 | 386,00 < Ød1 ≤ 387,00 | ± 2,69 | |
| 132,72 < Ød1 ≤ 134,30 | ± 1,05 | 387,00 < Ød1 ≤ 389,00 | ± 2,70 | |
| 134,30 < Ød1 ≤ 135,76 | ± 1,06 | 389,00 < Ød1 ≤ 391,00 | ± 2,71 | |
| 135,76 < Ød1 ≤ 138,00 | ± 1,07 | 391,00 < Ød1 ≤ 392,00 | ± 2,72 | |
| 138,00 < Ød1 ≤ 138,94 | ± 1,08 | 392,00 < Ød1 ≤ 394,00 | ± 2,73 | |
| 138,94 < Ød1 ≤ 140,50 | ± 1,09 | 394,00 < Ød1 ≤ 395,00 | ± 2,74 | |
| 140,50 < Ød1 ≤ 142,00 | ± 1,10 | 395,00 < Ød1 ≤ 397,00 | ± 2,75 | |
| 142,00 < Ød1 ≤ 144,00 | ± 1,11 | 397,00 < Ød1 ≤ 398,00 | ± 2,76 | |
| 144,00 < Ød1 ≤ 145,00 | ± 1,12 | 398,00 < Ød1 ≤ 400,00 | ± 2,77 | |
| 145,00 < Ød1 ≤ 147,00 | ± 1,13 | 400,00 < Ød1 ≤ 402,00 | ± 2,78 | |
| 147,00 < Ød1 ≤ 148,00 | ± 1,14 | 402,00 < Ød1 ≤ 403,00 | ± 2,79 | |
| 148,00 < Ød1 ≤ 149,23 | ± 1,15 | 403,00 < Ød1 ≤ 405,00 | ± 2,80 | |
| 149,23 < Ød1 ≤ 151,00 | ± 1,16 | 405,00 < Ød1 ≤ 406,00 | ± 2,81 | |
| 151,00 < Ød1 ≤ 152,50 | ± 1,17 | 406,00 < Ød1 ≤ 408,00 | ± 2,82 | |
| 152,50 < Ød1 ≤ 154,00 | ± 1,18 | 408,00 < Ød1 ≤ 409,00 | ± 2,83 | |
| 154,00 < Ød1 ≤ 155,50 | ± 1,19 | 409,00 < Ød1 ≤ 411,00 | ± 2,84 | |
| 155,50 < Ød1 ≤ 157,00 | ± 1,20 | 411,00 < Ød1 ≤ 413,00 | ± 2,85 | |
| 157,00 < Ød1 ≤ 158,34 | ± 1,21 | 413,00 < Ød1 ≤ 414,00 | ± 2,86 | |
| 158,34 < Ød1 ≤ 160,00 | ± 1,22 | 414,00 < Ød1 ≤ 416,00 | ± 2,87 | |
| 160,00 < Ød1 ≤ 161,30 | ± 1,23 | 416,00 < Ød1 ≤ 417,00 | ± 2,88 | |
| 161,30 < Ød1 ≤ 163,00 | ± 1,24 | 417,00 < Ød1 ≤ 419,00 | ± 2,89 | |
| 163,00 < Ød1 ≤ 164,30 | ± 1,25 | 419,00 < Ød1 ≤ 421,00 | ± 2,90 | |
| 164,30 < Ød1 ≤ 166,00 | ± 1,26 | 421,00 < Ød1 ≤ 422,00 | ± 2,91 | |
| 166,00 < Ød1 ≤ 167,50 | ± 1,27 | 422,00 < Ød1 ≤ 424,00 | ± 2,92 | |
| 167,50 < Ød1 ≤ 169,00 | ± 1,28 | 424,00 < Ød1 ≤ 425,00 | ± 2,93 | |
| 169,00 < Ød1 ≤ 170,69 | ± 1,29 | 425,00 < Ød1 ≤ 427,00 | ± 2,94 | |
| 170,69 < Ød1 ≤ 172,00 | ± 1,30 | 427,00 < Ød1 ≤ 428,00 | ± 2,95 | |
| 172,00 < Ød1 ≤ 173,87 | ± 1,31 | 428,00 < Ød1 ≤ 430,00 | ± 2,96 | |
| 173,87 < Ød1 ≤ 175,00 | ± 1,32 | 430,00 < Ød1 ≤ 432,00 | ± 2,97 | |
| 175,00 < Ød1 ≤ 177,00 | ± 1,33 | 432,00 < Ød1 ≤ 433,00 | ± 2,98 | |
| 177,00 < Ød1 ≤ 178,00 | ± 1,34 | 433,00 < Ød1 ≤ 435,00 | ± 2,99 | |
| 178,00 < Ød1 ≤ 179,50 | ± 1,35 | 435,00 < Ød1 ≤ 436,00 | ± 3,00 | |
| 179,50 < Ød1 ≤ 181,00 | ± 1,36 | 436,00 < Ød1 ≤ 438,00 | ± 3,01 | |
| 181,00 < Ød1 ≤ 182,50 | ± 1,37 | 438,00 < Ød1 ≤ 439,30 | ± 3,02 | |
| 182,50 < Ød1 ≤ 184,00 | ± 1,38 | 439,30 < Ød1 ≤ 441,00 | ± 3,03 | |
| 184,00 < Ød1 ≤ 186,00 | ± 1,39 | 441,00 < Ød1 ≤ 443,00 | ± 3,04 | |
| 186,00 < Ød1 ≤ 187,00 | ± 1,40 | 443,00 < Ød1 ≤ 444,00 | ± 3,05 | |
| 187,00 < Ød1 ≤ 189,00 | ± 1,41 | 444,00 < Ød1 ≤ 446,00 | ± 3,06 | |
| 189,00 < Ød1 ≤ 190,00 | ± 1,42 | 446,00 < Ød1 ≤ 447,00 | ± 3,07 | |
| 190,00 < Ød1 ≤ 192,00 | ± 1,43 | 447,00 < Ød1 ≤ 449,00 | ± 3,08 | |
| 192,00 < Ød1 ≤ 193,00 | ± 1,44 | 449,00 < Ød1 ≤ 451,00 | ± 3,09 | |
| 193,00 < Ød1 ≤ 195,00 | ± 1,45 | 451,00 < Ød1 ≤ 452,00 | ± 3,10 | |
| 195,00 < Ød1 ≤ 196,22 | ± 1,46 | 452,00 < Ød1 ≤ 454,00 | ± 3,11 | |
| 196,22 < Ød1 ≤ 198,00 | ± 1,47 | 454,00 < Ød1 ≤ 455,00 | ± 3,12 | |
| 198,00 < Ød1 ≤ 199,10 | ± 1,48 | 455,00 < Ød1 ≤ 457,00 | ± 3,13 | |
| 199,10 < Ød1 ≤ 201,00 | ± 1,49 | 457,00 < Ød1 ≤ 459,00 | ± 3,14 | |
| 201,00 < Ød1 ≤ 202,57 | ± 1,50 | 459,00 < Ød1 ≤ 460,00 | ± 3,15 | |
| 202,57 < Ød1 ≤ 204,00 | ± 1,51 | 460,00 < Ød1 ≤ 462,00 | ± 3,16 | |
| 204,00 < Ød1 ≤ 206,00 | ± 1,52 | 462,00 < Ød1 ≤ 463,00 | ± 3,17 | |
| 206,00 < Ød1 ≤ 207,00 | ± 1,53 | 463,00 < Ød1 ≤ 465,00 | ± 3,18 | |
| 207,00 < Ød1 ≤ 208,50 | ± 1,54 | 465,00 < Ød1 ≤ 467,00 | ± 3,19 | |
| 208,50 < Ød1 ≤ 210,00 | ± 1,55 | 467,00 < Ød1 ≤ 468,00 | ± 3,20 | |
| 210,00 < Ød1 ≤ 212,00 | ± 1,56 | 468,00 < Ød1 ≤ 470,00 | ± 3,21 | |
| 212,00 < Ød1 ≤ 213,00 | ± 1,57 | 470,00 < Ød1 ≤ 471,00 | ± 3,22 | |
| 213,00 < Ød1 ≤ 214,50 | ± 1,58 | 471,00 < Ød1 ≤ 473,00 | ± 3,23 | |
| 214,50 < Ød1 ≤ 216,00 | ± 1,59 | 473,00 < Ød1 ≤ 475,00 | ± 3,24 | |
| 216,00 < Ød1 ≤ 218,00 | ± 1,60 | 475,00 < Ød1 ≤ 476,00 | ± 3,25 | |
| 218,00 < Ød1 ≤ 219,00 | ± 1,61 | 476,00 < Ød1 ≤ 478,00 | ± 3,26 | |
| 219,00 < Ød1 ≤ 221,00 | ± 1,62 | 478,00 < Ød1 ≤ 479,00 | ± 3,27 | |
| 221,00 < Ød1 ≤ 222,00 | ± 1,63 | 479,00 < Ød1 ≤ 481,00 | ± 3,28 | |
| 222,00 < Ød1 ≤ 224,00 | ± 1,64 | 481,00 < Ød1 ≤ 482,00 | ± 3,29 | |
| 224,00 < Ød1 ≤ 226,00 | ± 1,65 | 482,00 < Ød1 ≤ 484,00 | ± 3,30 | |
| 226,00 < Ød1 ≤ 227,00 | ± 1,66 | 484,00 < Ød1 ≤ 486,00 | ± 3,31 | |
| 227,00 < Ød1 ≤ 228,19 | ± 1,67 | 486,00 < Ød1 ≤ 487,00 | ± 3,32 | |
| 228,19 < Ød1 ≤ 230,00 | ± 1,68 | 487,00 < Ød1 ≤ 489,00 | ± 3,33 | |
| 230,00 < Ød1 ≤ 232,00 | ± 1,69 | 489,00 < Ød1 ≤ 490,00 | ± 3,34 | |
| 232,00 < Ød1 ≤ 233,00 | ± 1,70 | 490,00 < Ød1 ≤ 492,00 | ± 3,35 | |
| 233,00 < Ød1 ≤ 234,32 | ± 1,71 | 492,00 < Ød1 ≤ 494,00 | ± 3,36 | |
| 234,32 < Ød1 ≤ 236,00 | ± 1,72 | 494,00 < Ød1 ≤ 495,00 | ± 3,37 | |
| 236,00 < Ød1 ≤ 237,50 | ± 1,73 | 495,00 < Ød1 ≤ 497,00 | ± 3,38 | |
| 237,50 < Ød1 ≤ 239,00 | ± 1,74 | 497,00 < Ød1 ≤ 498,00 | ± 3,39 | |
| 239,00 < Ød1 ≤ 240,67 | ± 1,75 | 498,00 < Ød1 ≤ 500,00 | ± 3,40 | |
| 240,67 < Ød1 ≤ 242,00 | ± 1,76 | 500,00 < Ød1 ≤ 504,00 | ± 3,41 |
Tolerance on the cross-section Ød2
The tolerances on standardised cross-sections Ød2 set out in the table below relate to standard ISO 3601-1:2008.
| Cross-section Ød2 |
Tolerances |
|---|---|
| 1.02 | ± 0.08 |
| 1.27 | ± 0.08 |
| 1.52 | ± 0.08 |
| 1.78 | ± 0.08 |
| 2.62 | ± 0.09 |
| 3.53 | ± 0.10 |
| 5.33 | ± 0.13 |
| 6.99 | ± 0.15 |
The tolerances on non-standardised cross-sections Ød2 set out in the table below relate to standard ISO 3601-1:2008.
| Cross-section Ød2 |
Tolerances |
|---|---|
| 0.80 < d2 ≤ 2.25 | ± 0.08 |
| 2.25 < d2 ≤ 3.15 | ± 0.09 |
| 3.15 < d2 ≤ 4.50 | ± 0.10 |
| 4.50 < d2 ≤ 6.30 | ± 0.13 |
| 6.30 < d2 ≤ 8.40 | ± 0.15 |
| 8.40 < d2 ≤ 10.00 | ± 0.21 |
Static sealing - Installation in a rectangular groove with radial deformation
The table below sets out the design recommendations - Rectangular groove - Radial static pneumatic and hydraulic sealing
| Cross-section Ød2 |
Groove depth t 0/+0.05 |
Groove width L1 0/+0.20 |
Groove radius R1 |
Radial extrusion gap F/2 |
|---|---|---|---|---|
| 1.02 | 0.75 | 1.20 | 0.10 | 0.03 |
| 1.27 | 0.90 | 1.40 | 0.10 | 0.03 |
| 1.52 | 1.15 | 1.70 | 0.20 | 0.04 |
| 1.78 | 1.40 | 2.00 | 0.20 | 0.05 |
| 2.62 | 2.25 | 3.00 | 0.30 | 0.08 |
| 3.53 | 3.10 | 4.00 | 0.40 | 0.08 |
| 5.33 | 4.75 | 6.00 | 0.40 | 0.10 |
| 6.99 | 6.20 | 8.00 | 0.60 | 0.10 |
Static sealing - Installation in a rectangular groove with axial deformation
The table below sets out the design recommendations - Rectangular groove - Axial static sealing
| Cross-section Ød2 |
Groove depth h 0/+0.05 |
Groove width L4 0/+0.20 |
Groove radius R1 |
Radial extrusion gap F/2 |
|---|---|---|---|---|
| 1.02 | 0.75 | 1.20 | 0.10 | 0.03 |
| 1.27 | 0.90 | 1.40 | 0.10 | 0.03 |
| 1.52 | 1.15 | 1.70 | 0.20 | 0.04 |
| 1.78 | 1.40 | 2.00 | 0.20 | 0.05 |
| 2.62 | 2.25 | 3.00 | 0.30 | 0.08 |
| 3.53 | 3.10 | 4.00 | 0.40 | 0.08 |
| 5.33 | 4.75 | 6.00 | 0.40 | 0.10 |
| 6.99 | 6.20 | 8.00 | 0.60 | 0.10 |
Hydraulic axial movement sealing - Installation in a rectangular groove with radial deformation
The table below sets out the design recommendations - Rectangular groove - Dynamic hydraulic sealing for linear movements
| Cross-section Ød2 |
Groove depth t 0/+0.05 |
Groove width L1 0/+0.20 |
Groove radius R1 |
Radial extrusion gap F/2 |
|---|---|---|---|---|
| 1.02 | 0.80 | 1.20 | 0.10 | 0.03 |
| 1.27 | 1.00 | 1.40 | 0.10 | 0.03 |
| 1.52 | 1.25 | 1.70 | 0.20 | 0.04 |
| 1.78 | 1.50 | 2.00 | 0.20 | 0.05 |
| 2.62 | 2.30 | 3.00 | 0.30 | 0.08 |
| 3.53 | 3.20 | 4.00 | 0.40 | 0.08 |
| 5.33 | 4.90 | 6.00 | 0.40 | 0.10 |
| 6.99 | 6.40 | 8.00 | 0.60 | 0.10 |
Hydraulic rotation motion sealing - Installation in a rectangular groove with radial deformation
The table below sets out the design recommendations - Rectangular groove - Dynamic hydraulic sealing for rotating movements
| Cross-section Ød2 |
Groove depth t 0/+0.05 |
Groove width L1 0/+0.20 |
Groove radius R1 |
Radial extrusion gap F/2 |
|---|---|---|---|---|
| 1.02 | 0.80 | 1.20 | 0.10 | 0.03 |
| 1.27 | 1.00 | 1.40 | 0.10 | 0.03 |
| 1.52 | 1.25 | 1.70 | 0.20 | 0.04 |
| 1.78 | 1.50 | 2.00 | 0.20 | 0.05 |
| 2.62 | 2.30 | 3.00 | 0.30 | 0.08 |
| 3.53 | 3.20 | 4.00 | 0.40 | 0.08 |
| 5.33 | 4.90 | 6.00 | 0.40 | 0.10 |
| 6.99 | 6.40 | 8.00 | 0.60 | 0.10 |
Surface roughness
We recommend using steel or non-porous cast iron to make the tubes and rods. For dynamic applications, brass, untreated stainless steel and aluminium are not as hard and are therefore not recommended, as they would be subjected to a lot of wear.
The sealing must be of a high quality due to the roughness. The surface roughness of grooves improves during alternating pressures.
| Type of application | Type of surface | Roughness Ra |
Roughness Rz |
Roughness |
|---|---|---|---|---|
| Radial - Static | Under non-pulsating pressure | |||
| Mating surface (rod and cylinder) | 1.6 µm | 6.3 µm | 10.0 µm | |
| Groove diameter and groove flanks | 1.6 µm | 6.3 µm | 10.0 µm | |
| Under pulsating pressure | ||||
| Mating surface (rod and cylinder) | 0.8 µm | 3.2 µm | 5.0 µm | |
| Groove diameter and groove flanks | 1.6 µm | 6.3 µm | 10.0 µm | |
| Radial - Dynamic | Mating surface (rod and cylinder) | 0.4 µm | 1.6 µm | 2.5 µm |
| Groove diameter and groove flanks | 0.8 µm | 3.2 µm | 5.0 µm | |
| Axial - Static | Clamping surface | 1.6 µm | 6.3 µm | 10.0 µm |
| Groove flanks | 1.6 µm | 6.3 µm | 10.0 µm | |
Chamfers and radius
Given that the X'Rings are fitted pre-tightened, the chamfer lengths and rounded cutting edges must fit with the table below.
| Cross-section Ød2 |
Radius R1 |
Max radius R2 |
Chamfer C |
|
|---|---|---|---|---|
| 15° | 20° | |||
| 1,78 - 1,80 | 0,30 | 0,20 | 2,50 | 2,00 |
| 2,62 - 2,65 | 0,30 | 0,20 | 3,00 | 2,50 |
| 3,53 - 3,55 | 0,60 | 0,20 | 3,50 | 3,00 |
| 5,33 - 5,30 | 0,60 | 0,20 | 4,00 | 3,50 |
| 6,99 - 7,00 | 1,00 | 0,20 | 5,00 | 4,00 |
| 8,40 | 1,00 | 0,20 | 6,00 | 4,50 |
External sealing - Dynamic application (alternating) with BECA 012 back-up ring
| Part number | X'Ring Dimensions |
Rod diameter |
Groove diameter |
Groove width |
Groove width |
Groove width |
Radius | Back-up ring |
|---|---|---|---|---|---|---|---|---|
| Ød5 f7 | ØD6 H9 | L1 0/+0,20 | L2 0/+0,20 | L3 0/+0,20 | R1 | Part number BECA 012 Rod |
||
| 001.QR003 | 4,47 x 1,78 | 4,00 | 7,00 | 2,00 | 3,40 | 4,80 | 0,20 | 012.004007 |
| 001.QR004 | 5,28 x 1,78 | 5,00 | 8,00 | 2,00 | 3,40 | 4,80 | 0,20 | 012.005008 |
| 001.QR005 | 6,07 x 1,78 | 6,00 | 9,00 | 2,00 | 3,40 | 4,80 | 0,20 | 012.006009 |
| 001.Q82178 | 8,20 x 1,78 | 8,00 | 11,00 | 2,00 | 3,40 | 4,80 | 0,20 | 012.008011 |
| 001.Q10226 | 10,20 x 2,62 | 10,00 | 14,60 | 3,00 | 4,40 | 5,80 | 0,30 | 012.010146 |
| 001.QR010 | 12,37 x 2,62 | 12,00 | 16,60 | 3,00 | 4,40 | 5,80 | 0,30 | 012.012166 |
| 001.QR011 | 13,94 x 2,62 | 14,00 | 18,60 | 3,00 | 4,40 | 5,80 | 0,30 | 012.014186 |
| 001.QR11A | 14,70 x 2,62 | 15,00 | 19,60 | 3,00 | 4,40 | 5,80 | 0,30 | 012.015196 |
| 001.Q16226 | 16,20 x 2,62 | 16,00 | 20,60 | 3,00 | 4,40 | 5,80 | 0,30 | 012.016206 |
| 001.Q18235 | 18,20 x 3,53 | 18,00 | 24,40 | 4,00 | 5,40 | 6,80 | 0,40 | 012.018244 |
| 001.QR016 | 20,22 x 3,53 | 20,00 | 26,40 | 4,00 | 5,40 | 6,80 | 0,40 | 012.020264 |
| 001.QR017 | 21,82 x 3,53 | 22,00 | 28,40 | 4,00 | 5,40 | 6,80 | 0,40 | 012.022284 |
| 001.QR019 | 24,99 x 3,53 | 25,00 | 31,40 | 4,00 | 5,40 | 6,80 | 0,40 | 012.025314 |
| 001.QR021 | 28,17 x 3,53 | 28,00 | 34,40 | 4,00 | 5,40 | 6,80 | 0,40 | 012.028344 |
| 001.QR022 | 29,74 x 3,53 | 30,00 | 36,40 | 4,00 | 5,40 | 6,80 | 0,40 | 012.030364 |
| 001.QR023 | 31,34 x 3,53 | 32,00 | 38,40 | 4,00 | 5,40 | 6,80 | 0,40 | 012.032384 |
| 001.QR025 | 34,52 x 3,53 | 35,00 | 41,40 | 4,00 | 5,40 | 6,80 | 0,40 | 012.035414 |
| 001.QR026 | 36,09 x 3,53 | 36,00 | 42,40 | 4,00 | 5,40 | 6,80 | 0,40 | 012.036424 |
| 001.QR029 | 40,64 x 5,33 | 40,00 | 49,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.040498 |
| 001.QR029 | 40,64 x 5,33 | 42,00 | 51,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.042518 |
| 001.Q45253 | 45,20 x 5,33 | 45,00 | 54,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.045548 |
| 001.QR031 | 46,99 x 5,33 | 48,00 | 57,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.048578 |
| 001.QR032 | 50,17 x 5,33 | 50,00 | 59,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.050598 |
| 001.QR032 | 50,17 x 5,33 | 52,00 | 61,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.052618 |
| 001.QR033 | 53,34 x 5,33 | 55,00 | 64,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.055648 |
| 001.QR034 | 56,52 x 5,33 | 56,00 | 65,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.056658 |
| 001.QR035 | 59,69 x 5,33 | 60,00 | 69,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.060698 |
| 001.QR036 | 62,87 x 5,33 | 63,00 | 72,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.063728 |
| 001.QR037 | 66,04 x 5,33 | 65,00 | 74,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.065748 |
| 001.QR038 | 69,22 x 5,33 | 70,00 | 79,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.070798 |
| 001.QR040 | 75,57 x 5,33 | 75,00 | 84,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.075848 |
| 001.QR041 | 78,74 x 5,33 | 80,00 | 89,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.080898 |
| 001.QR043 | 85,09 x 5,33 | 85,00 | 94,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.085948 |
| 001.QR045 | 91,44 x 5,33 | 90,00 | 99,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.090998 |
| 001.QR048 | 100,97 x 5,33 | 100,00 | 109,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.1001098 |
| 001.QR049 | 104,14 x 5,33 | 105,00 | 114,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.1051148 |
| 001.QR051 | 110,49 x 5,33 | 110,00 | 119,80 | 6,00 | 7,70 | 9,40 | 0,40 | 012.1101198 |
| 001.QR053 | 116,84 x 6,99 | 115,00 | 127,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1151278 |
| 001.QR054 | 120,02 x 6,99 | 120,00 | 132,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1201328 |
| 001.QR056 | 126,37 x 6,99 | 125,00 | 137,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1251378 |
| 001.QR057 | 129,54 x 6,99 | 130,00 | 142,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1301428 |
| 001.QR059 | 135,89 x 6,99 | 135,00 | 147,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1351478 |
| 001.QR060 | 139,07 x 6,99 | 140,00 | 152,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1401528 |
| 001.QR063 | 148,59 x 6,99 | 150,00 | 162,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1501628 |
| 001.Q16056 | 160,50 x 6,99 | 160,00 | 172,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1601728 |
| 001.QR067 | 170,82 x 6,99 | 170,00 | 182,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1701828 |
| 001.QR068 | 177,17 x 6,99 | 180,00 | 192,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1801928 |
| 001.QR070 | 189,87 x 6,99 | 190,00 | 202,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1902028 |
| 001.QR072 | 202,57 x 6,99 | 200,00 | 212,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.2002128 |
| 001.QR073 | 215,27 x 6,99 | 210,00 | 222,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.2102228 |
| 001.QR073 | 215,27 x 6,99 | 220,00 | 232,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.2202328 |
| 001.QR074 | 227,97 x 6,99 | 230,00 | 242,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.2302428 |
| 001.QR075 | 240,67 x 6,99 | 240,00 | 252,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.2402528 |
| 001.QR076 | 253,37 x 6,99 | 250,00 | 262,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.2502628 |
| 001.QR078 | 278,77 x 6,99 | 280,00 | 292,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.2802928 |
| 001.QR080 | 304,17 x 6,99 | 300,00 | 312,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.3003128 |
| 001.QR081 | 316,87 x 6,99 | 320,00 | 332,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.3203328 |
| 001.QR084 | 354,97 x 6,99 | 350,00 | 362,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.3503628 |
| 001.QR084 | 354,97 x 6,99 | 360,00 | 372,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.3603728 |
| 001.Q40526 | 405,26 x 6,99 | 400,00 | 412,80 | 8,00 | 10,50 | 13,00 | 0,60 | 012.4004128 |
Internal sealing - Dynamic application (alternating) with BECA 012 back-up ring
| Part number | X'Ring Dimensions |
Bore diameter |
Groove diameter |
Groove width |
Groove width |
Groove width |
Radius | Back-up ring |
|---|---|---|---|---|---|---|---|---|
| ØD4 H8 | Ød3 h9 | L1 0/+0,20 | L2 0/+0,20 | L3 0/+0,20 | R1 | Part number BECA 012 Piston |
||
| 001.257178 | 2,57 x 1,78 | 6,00 | 3,00 | 2,00 | 3,40 | 4,80 | 0,20 | 012.006003 |
| 001.QR003 | 4,47 x 1,78 | 8,00 | 5,00 | 2,00 | 3,40 | 4,80 | 0,20 | 012.008005 |
| 001.QR005 | 6,07 x 1,78 | 10,00 | 7,00 | 2,00 | 3,40 | 4,80 | 0,20 | 012.010007 |
| 001.Q82178 | 8,20 x 1,78 | 12,00 | 9,00 | 2,00 | 3,40 | 4,80 | 0,20 | 012.012009 |
| 001.QR050 | 10,82 x 1,78 | 14,00 | 11,00 | 2,00 | 3,40 | 4,80 | 0,20 | 012.014011 |
| 001.Q10226 | 10,20 x 2,62 | 15,00 | 10,40 | 3,00 | 4,40 | 5,80 | 0,30 | 012.015104 |
| 001.QR009 | 10,77 x 2,62 | 16,00 | 11,40 | 3,00 | 4,40 | 5,80 | 0,30 | 012.016114 |
| 001.QR010 | 12,37 x 2,62 | 18,00 | 13,40 | 3,00 | 4,40 | 5,80 | 0,30 | 012.018134 |
| 001.QR11A | 14,70 x 2,62 | 20,00 | 15,40 | 3,00 | 4,40 | 5,80 | 0,30 | 012.020154 |
| 001.Q16226 | 16,20 x 2,62 | 22,00 | 17,40 | 3,00 | 4,40 | 5,80 | 0,30 | 012.022174 |
| 001.Q18235 | 18,20 x 3,53 | 25,00 | 18,60 | 4,00 | 5,40 | 6,80 | 0,40 | 012.025186 |
| 001.QR017 | 21,82 x 3,53 | 28,00 | 21,60 | 4,00 | 5,40 | 6,80 | 0,40 | 012.028216 |
| 001.QR018 | 23,39 x 3,53 | 30,00 | 23,60 | 4,00 | 5,40 | 6,80 | 0,40 | 012.030236 |
| 001.QR019 | 24,99 x 3,53 | 32,00 | 25,60 | 4,00 | 5,40 | 6,80 | 0,40 | 012.032256 |
| 001.QR021 | 28,17 x 3,53 | 35,00 | 28,60 | 4,00 | 5,40 | 6,80 | 0,40 | 012.035286 |
| 001.QR024 | 32,92 x 3,53 | 40,00 | 33,60 | 4,00 | 5,40 | 6,80 | 0,40 | 012.040336 |
| 001.QR025 | 34,52 x 3,53 | 42,00 | 35,60 | 4,00 | 5,40 | 6,80 | 0,40 | 012.042356 |
| 001.QR027 | 37,69 x 3,53 | 45,00 | 38,60 | 4,00 | 5,40 | 6,80 | 0,40 | 012.045386 |
| 001.QR028 | 37,47 x 5,33 | 48,00 | 38,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.048382 |
| 001.Q39253 | 39,20 x 5,33 | 50,00 | 40,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.050402 |
| 001.QR029 | 40,64 x 5,33 | 52,00 | 42,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.052422 |
| 001.QR030 | 43,82 x 5,33 | 55,00 | 45,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.055452 |
| 001.QR032 | 50,17 x 5,33 | 60,00 | 50,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.060502 |
| 001.QR033 | 53,34 x 5,33 | 63,00 | 53,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.063532 |
| 001.QR033 | 53,34 x 5,33 | 65,00 | 55,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.065552 |
| 001.QR035 | 59,69 x 5,33 | 70,00 | 60,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.070602 |
| 001.QR036 | 62,87 x 5,33 | 75,00 | 65,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.075652 |
| 001.QR038 | 69,22 x 5,33 | 80,00 | 70,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.080702 |
| 001.QR040 | 75,57 x 5,33 | 85,00 | 75,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.085752 |
| 001.QR041 | 78,74 x 5,33 | 90,00 | 80,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.090802 |
| 001.QR043 | 85,09 x 5,33 | 95,00 | 85,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.095852 |
| 001.QR045 | 91,44 x 5,33 | 100,00 | 90,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.100902 |
| 001.QR046 | 94,62 x 5,33 | 105,00 | 95,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.105952 |
| 001.QR048 | 100,97 x 5,33 | 110,00 | 100,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.1101002 |
| 001.QR049 | 104,14 x 5,33 | 115,00 | 105,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.1151052 |
| 001.QR051 | 110,49 x 5,33 | 120,00 | 110,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.1201102 |
| 001.QR052 | 113,67 x 5,33 | 125,00 | 115,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.1251152 |
| 001.120533 | 120,02 x 5,33 | 130,00 | 120,20 | 6,00 | 7,70 | 9,40 | 0,40 | 012.1301202 |
| 001.QR054 | 120,02 x 6,99 | 135,00 | 122,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1351222 |
| 001.QR056 | 126,37 x 6,99 | 140,00 | 127,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1401272 |
| 001.QR059 | 135,89 x 6,99 | 150,00 | 137,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1501372 |
| 001.QR062 | 145,42 x 6,99 | 160,00 | 147,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1601472 |
| 001.QR065 | 158,12 x 6,99 | 170,00 | 157,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1701572 |
| 001.QR066 | 164,47 x 6,99 | 180,00 | 167,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1801672 |
| 001.QR068 | 177,17 x 6,99 | 190,00 | 177,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.1901772 |
| 001.QR069 | 183,52 x 6,99 | 200,00 | 187,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.2001872 |
| 001.QR071 | 196,22 x 6,99 | 210,00 | 197,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.2101972 |
| 001.QR072 | 202,57 x 6,99 | 220,00 | 207,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.2202072 |
| 001.QR073 | 215,27 x 6,99 | 230,00 | 217,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.2302172 |
| 001.QR074 | 227,97 x 6,99 | 240,00 | 227,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.2402272 |
| 001.QR074 | 227,97 x 6,99 | 250,00 | 237,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.2502372 |
| 001.QR077 | 266,07 x 6,99 | 280,00 | 267,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.2802672 |
| 001.QR078 | 278,77 x 6,99 | 300,00 | 287,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.3002872 |
| 001.QR080 | 304,17 x 6,99 | 320,00 | 307,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.3203072 |
| 001.QR082 | 329,57 x 6,99 | 350,00 | 337,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.3503372 |
| 001.QR086 | 380,37 x 6,99 | 400,00 | 387,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.4003872 |
| 001.Q40526 | 405,26 x 6,99 | 420,00 | 407,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.4204072 |
| 001.Q43066 | 430,66 x 6,99 | 450,00 | 437,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.4504372 |
| 001.Q45606 | 456,06 x 6,99 | 480,00 | 467,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.4804672 |
| 001.Q48146 | 481,46 x 6,99 | 500,00 | 487,20 | 8,00 | 10,50 | 13,00 | 0,60 | 012.5004872 |
Internal sealing - Dynamic application (rotating) with uncut BECA 011 back-up ring
| Part number | X'Ring dimensions |
Rod diameter |
Groove diameter |
Groove width |
Groove width |
Groove width |
Radius | Back-up ring |
|---|---|---|---|---|---|---|---|---|
| Ød5 f7 | ØD6 H8 | L1 0/+0,20 | L2 0/+0,20 | L3 0/+0,20 | R1 | Part number BECA 011 Rod |
||
| 001.QR003 | 4,47 x 1,78 | 4,00 | 7,20 | 2,00 | 3,20 | 4,40 | 0,20 | 011.004072 |
| 001.QR004 | 5,28 x 1,78 | 5,00 | 8,20 | 2,00 | 3,20 | 4,40 | 0,20 | 011.005082 |
| 001.Q82178 | 8,20 x 1,78 | 8,00 | 11,20 | 2,00 | 3,20 | 4,40 | 0,20 | 011.008112 |
| 001.Q10226 | 10,20 x 2,62 | 10,00 | 14,80 | 2,80 | 4,00 | 5,20 | 0,30 | 011.010148 |
| 001.QR010 | 12,37 x 2,62 | 12,00 | 16,80 | 2,80 | 4,00 | 5,20 | 0,30 | 011.012168 |
| 001.QR012 | 15,54 x 2,62 | 15,00 | 19,80 | 2,80 | 4,00 | 5,20 | 0,30 | 011.015198 |
| 001.QR013 | 17,12 x 2,62 | 16,00 | 20,80 | 2,80 | 4,00 | 5,20 | 0,30 | 011.016208 |
| 001.QR014 | 18,72 x 2,62 | 18,00 | 22,80 | 2,80 | 4,00 | 5,20 | 0,30 | 011.018228 |
| 001.QR016 | 20,22 x 3,53 | 20,00 | 26,70 | 3,80 | 5,40 | 7,00 | 0,40 | 011.020267 |
| 001.QR018 | 23,39 x 3,53 | 22,00 | 28,70 | 3,80 | 5,40 | 7,00 | 0,40 | 011.022287 |
| 001.QR020 | 26,57 x 3,53 | 25,00 | 31,70 | 3,80 | 5,40 | 7,00 | 0,40 | 011.025317 |
| 001.QR022 | 29,74 x 3,53 | 28,00 | 34,70 | 3,80 | 5,40 | 7,00 | 0,40 | 011.028347 |
| 001.QR023 | 31,34 x 3,53 | 30,00 | 36,70 | 3,80 | 5,40 | 7,00 | 0,40 | 011.030367 |
| 001.QR024 | 32,92 x 3,53 | 32,00 | 38,70 | 3,80 | 5,40 | 7,00 | 0,40 | 011.032387 |
| 001.QR026 | 36,09 x 3,53 | 35,00 | 41,70 | 3,80 | 5,40 | 7,00 | 0,40 | 011.035417 |
| 001.QR027 | 37,69 x 3,53 | 36,00 | 42,70 | 3,80 | 5,40 | 7,00 | 0,40 | 011.036427 |
| 001.QR029 | 40,64 x 5,33 | 40,00 | 49,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.040499 |
| 001.QR030 | 43,82 x 5,33 | 42,00 | 51,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.042519 |
| 001.QR031 | 46,99 x 5,33 | 45,00 | 54,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.045549 |
| 001.QR032 | 50,17 x 5,33 | 48,00 | 57,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.048579 |
| 001.QR032 | 50,17 x 5,33 | 48,00 | 57,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.048579 |
| 001.QR033 | 53,34 x 5,33 | 50,00 | 59,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.050599 |
| 001.QR033 | 53,34 x 5,33 | 52,00 | 61,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.052619 |
| 001.QR034 | 56,52 x 5,33 | 55,00 | 64,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.055649 |
| 001.QR034 | 56,52 x 5,33 | 56,00 | 65,00 | 6,00 | 8,00 | 10,00 | 0,40 | 011.05665 |
| 001.QR036 | 62,87 x 5,33 | 60,00 | 69,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.060699 |
| 001.QR037 | 66,04 x 5,33 | 63,00 | 72,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.063729 |
| 001.QR037 | 66,04 x 5,33 | 65,00 | 74,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.065749 |
| 001.QR039 | 72,39 x 5,33 | 70,00 | 79,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.070799 |
| 001.QR041 | 78,74 x 5,33 | 75,00 | 84,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.075849 |
| 001.QR042 | 81,92 x 5,33 | 80,00 | 89,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.080899 |
| 001.QR044 | 88,27 x 5,33 | 85,00 | 94,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.085949 |
| 001.QR046 | 94,62 x 5,33 | 90,00 | 99,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.090999 |
| 001.QR047 | 97,99 x 5,33 | 95,00 | 104,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.0951049 |
| 001.QR049 | 104,14 x 5,33 | 100,00 | 109,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.1001099 |
| 001.QR051 | 110,49 x 5,33 | 105,00 | 114,90 | 6,00 | 8,00 | 10,00 | 0,40 | 011.1051149 |
| 001.QR053 | 116,84 x 6,99 | 110,00 | 123,30 | 7,70 | 10,20 | 12,70 | 0,60 | 011.1101233 |
| 001.QR054 | 120,02 x 6,99 | 115,00 | 128,30 | 7,70 | 10,20 | 12,70 | 0,60 | 011.1151283 |
| 001.QR055 | 123,19 x 6,99 | 120,00 | 133,30 | 7,70 | 10,20 | 12,70 | 0,60 | 011.1201333 |
| 001.QR057 | 129,54 x 6,99 | 125,00 | 138,30 | 7,70 | 10,20 | 12,70 | 0,60 | 011.1251383 |
| 001.QR059 | 135,89 x 6,99 | 130,00 | 143,30 | 7,70 | 10,20 | 12,70 | 0,60 | 011.1301433 |
| 001.QR062 | 145,42 x 6,99 | 140,00 | 153,30 | 7,70 | 10,20 | 12,70 | 0,60 | 011.1401533 |
| 001.QR065 | 158,12 x 6,99 | 150,00 | 163,30 | 7,70 | 10,20 | 12,70 | 0,60 | 011.1501633 |
| 001.QR066 | 164,47 x 6,99 | 160,00 | 173,30 | 7,70 | 10,20 | 12,70 | 0,60 | 011.1601733 |
| 001.QR069 | 183,52 x 6,99 | 180,00 | 193,30 | 7,70 | 10,20 | 12,70 | 0,60 | 011.1801933 |
| 001.QR072 | 202,57 x 6,99 | 200,00 | 213,30 | 7,70 | 10,20 | 12,70 | 0,60 | 011.2002133 |
207 dimensions found
|
001.QR001
|
001 | 2,90 | 1,78 |
|
001.QR002
|
002 | 3,68 | 1,78 |
|
001.QR003
|
003 | 4,47 | 1,78 |
|
001.QR03A
|
03A | 4,62 | 1,78 |
|
001.QR004
|
004 | 5,28 | 1,78 |
|
001.QR04A
|
04A | 5,70 | 1,78 |
|
001.QR005
|
005 | 6,07 | 1,78 |
|
001.QR05A
|
05A | 6,65 | 1,78 |
|
001.QR006
|
006 | 7,65 | 1,78 |
|
001.QR06A
|
06A | 8,70 | 1,78 |
|
001.QR007
|
007 | 9,25 | 1,78 |
|
001.QR07A
|
07A | 9,70 | 1,78 |
|
001.QR113
|
113 | 10,82 | 1,78 |
|
001.QR114
|
114 | 12,42 | 1,78 |
|
001.QR115
|
115 | 14,00 | 1,78 |
|
001.QR116
|
116 | 15,60 | 1,78 |
|
001.QR117
|
117 | 17,17 | 1,78 |
|
001.QR118
|
118 | 18,77 | 1,78 |
|
001.QR119
|
119 | 20,35 | 1,78 |
|
001.QR120
|
120 | 21,95 | 1,78 |
|
001.QR121
|
121 | 23,52 | 1,78 |
|
001.QR122
|
122 | 25,12 | 1,78 |
|
001.QR123
|
123 | 26,70 | 1,78 |
|
001.QR124
|
124 | 28,30 | 1,78 |
|
001.QR125
|
125 | 29,87 | 1,78 |
|
001.QR137
|
137 | 63,22 | 1,78 |
|
001.QR008
|
008 | 9,19 | 2,62 |
|
001.QR08A
|
08A | 9,80 | 2,62 |
|
001.QR009
|
009 | 10,77 | 2,62 |
|
001.QR09A
|
09A | 11,70 | 2,62 |
|
001.QR010
|
010 | 12,37 | 2,62 |
|
001.QR10A
|
10A | 12,80 | 2,62 |
|
001.QR10B
|
10B | 13,70 | 2,62 |
|
001.QR011
|
011 | 13,94 | 2,62 |
|
001.QR11A
|
11A | 14,70 | 2,62 |
|
001.QR012
|
012 | 15,54 | 2,62 |
|
001.QR013
|
013 | 17,12 | 2,62 |
|
001.QR13A
|
13A | 17,75 | 2,62 |
|
001.QR014
|
014 | 18,72 | 2,62 |
|
001.QR14A
|
14A | 19,60 | 2,62 |
|
001.QR217
|
217 | 20,30 | 2,62 |
|
001.QR218
|
218 | 21,89 | 2,62 |
|
001.QR219
|
219 | 23,47 | 2,62 |
|
001.QR220
|
220 | 25,07 | 2,62 |
|
001.QR221
|
221 | 26,64 | 2,62 |
|
001.QR222
|
222 | 28,24 | 2,62 |
|
001.QR223
|
223 | 29,82 | 2,62 |
|
001.QR224
|
224 | 31,42 | 2,62 |
|
001.QR225
|
225 | 32,99 | 2,62 |
|
001.QR226
|
226 | 34,60 | 2,62 |
|
001.QR227
|
227 | 36,17 | 2,62 |
|
001.QR228
|
228 | 37,77 | 2,62 |
|
001.QR229
|
229 | 39,34 | 2,62 |
|
001.QR230
|
230 | 40,94 | 2,62 |
|
001.QR231
|
231 | 42,52 | 2,62 |
|
001.QR261
|
261 | 139,37 | 2,62 |
|
001.QR015
|
015 | 18,64 | 3,53 |
|
001.QR016
|
016 | 20,22 | 3,53 |
|
001.QR16A
|
16A | 20,90 | 3,53 |
|
001.QR017
|
017 | 21,82 | 3,53 |
|
001.QR018
|
018 | 23,39 | 3,53 |
|
001.QR18A
|
18A | 23,99 | 3,53 |
|
001.QR019
|
019 | 24,99 | 3,53 |
|
001.QR19A
|
19A | 25,90 | 3,53 |
|
001.QR020
|
020 | 26,57 | 3,53 |
|
001.QR20A
|
20A | 27,57 | 3,53 |
|
001.QR021
|
021 | 28,17 | 3,53 |
|
001.QR022
|
022 | 29,74 | 3,53 |
|
001.QR023
|
023 | 31,34 | 3,53 |
|
001.QR23A
|
23A | 32,04 | 3,53 |
|
001.QR024
|
024 | 32,92 | 3,53 |
|
001.QR24A
|
24A | 33,80 | 3,53 |
|
001.QR025
|
025 | 34,52 | 3,53 |
|
001.QR026
|
026 | 36,09 | 3,53 |
|
001.QR027
|
027 | 37,69 | 3,53 |
|
001.QR323
|
323 | 40,87 | 3,53 |
|
001.QR324
|
324 | 44,05 | 3,53 |
|
001.QR325
|
325 | 47,22 | 3,53 |
|
001.QR326
|
326 | 50,39 | 3,53 |
|
001.QR327
|
327 | 53,57 | 3,53 |
|
001.QR328
|
328 | 56,75 | 3,53 |
|
001.QR329
|
329 | 59,92 | 3,53 |
|
001.QR330
|
330 | 63,09 | 3,53 |
|
001.QR331
|
331 | 66,27 | 3,53 |
|
001.QR332
|
332 | 69,44 | 3,53 |
|
001.QR333
|
333 | 72,62 | 3,53 |
|
001.QR334
|
334 | 75,80 | 3,53 |
|
001.QR335
|
335 | 78,97 | 3,53 |
|
001.QR336
|
336 | 82,15 | 3,53 |
|
001.QR337
|
337 | 85,32 | 3,53 |
|
001.QR338
|
338 | 88,49 | 3,53 |
|
001.QR339
|
339 | 91,67 | 3,53 |
|
001.QR340
|
340 | 94,84 | 3,53 |
|
001.QR341
|
341 | 98,02 | 3,53 |
|
001.QR342
|
342 | 101,20 | 3,53 |
|
001.QR348
|
348 | 120,25 | 3,53 |
|
001.QR363
|
363 | 183,74 | 3,53 |
|
001.QR028
|
028 | 37,47 | 5,33 |
|
001.QR28A
|
28A | 39,64 | 5,33 |
|
001.QR029
|
029 | 40,64 | 5,33 |
