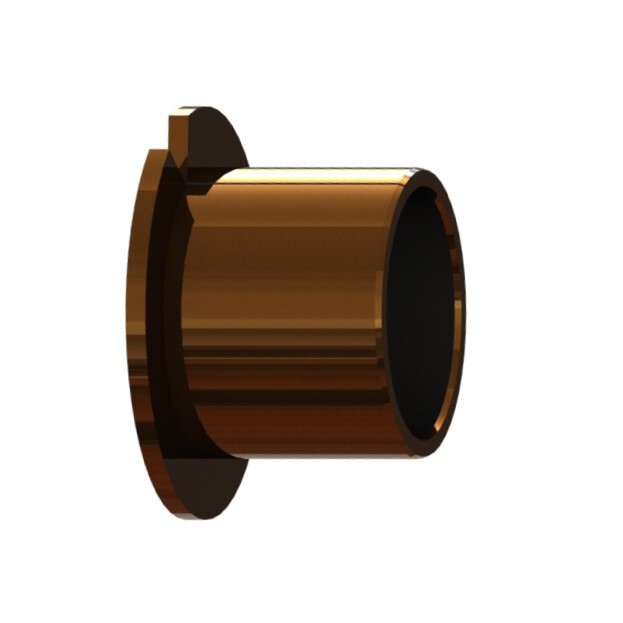

BECA 080E (Bronze)

Sliding bearings / Wrapped bushings

Copie de BECA 080B (Acier)

Description

The BECA 150 - 152 - 154 profiles are single acting composite rod seals composed of a filled PTFE friction ring and pre-tightened rubber O'Ring. They can be assembled in grooves according to standard ISO 7425/2. Option of connecting the seal to a back-up ring.

Advantages

Optimal sealing in static and dynamic applications
Low friction coefficient; no stick-slip effect
Excellent abrasion and extrusion resistance
Wide temperature range and excellent chemical resistance, depending on the material selected for the O'Ring

Applications

Mobile machinery
Injection presses
Machine tools
Presses
Standard cylinders

Download

Product data - Hydraulic rod seal - BECA 150 - 152 - 154 Product catalog - Hydraulic seals - Rod seals Product catalog - Hydraulic seals

Dimensions

Technical data

Dimensions

Installation drawing Logement Gorge joint de tige Housing Groove rod seal BECA 150 - 152 - 154

Technical data

Housing Groove Gland Rod Seal - BECA 150 - 152 - 154

Extrusion gaps

Radial section S	Radial extrusion gap F/2
Radial section S	10 MPa	20 MPa	40 MPa
2.45	0.30	0.20	0.15
3.65	0.40	0.25	0.15
5.35	0.50	0.30	0.20
7.55	0.70	0.40	0.25
10.25	0.80	0.60	0.35
12.00	0.90	0.70	0.40
13.65	1.00	0.80	0.50
19.00	1.20	0.90	0.60

Surface roughness

Roughness	Dynamic surface area	Static surface area	Groove flanks
Ra	0.05 - 0.2 µm	≤ 1.6 µm	≤ 3.2 µm
Rz	0.40 - 1.6 µm	≤ 6.3 µm	≤ 10.0 µm
Rmax	0.63 - 2.5 µm	≤ 10.0 µm	≤ 16.0 µm

Chamfers and radius

Radial section S	Radius R1	Radius R2	Chamfer C
2.45	0.30	0.40	3.00
3.65	0.30	0.60	3.00
5.35	0.30	1.00	3.00
7.55	0.30	1.30	5.00
10.25	0.30	1.80	6.00
12.00	0.30	1.80	8.00
13.65	0.30	2.50	10.00
19.00	0.30	3.00	12.00

74 dimensions found

080.006004E Standard request
080.006007E Standard request
080.006008E Standard request
080.008005E Standard request
080.008006E Standard request
080.008007E Standard request
080.008008E Standard request
080.008009E Standard request
080.008010E Standard request
080.010007E Standard request
080.010009E Standard request
080.010012E Standard request
080.010017E Standard request
080.012007E Standard request
080.012009E Standard request
080.012012E Standard request
080.012015E Standard request
080.012017E Standard request
080.014012E Standard request
080.014017E Standard request
080.015009E Standard request
080.015012E Standard request
080.015017E Standard request
080.016012E Standard request
080.016017E Standard request
080.018012E Standard request
080.018017E Standard request
080.018020E Standard request
080.020011E Standard request
080.020012E Standard request
080.020015E Standard request
080.020016E Standard request
080.020017E Standard request
080.020021E Standard request
080.020022E Standard request
080.022015E Standard request
080.022020E Standard request
080.025011E Standard request
080.025012E Standard request
080.025016E Standard request
080.025017E Standard request
080.025021E Standard request
080.025022E Standard request
080.030016E Standard request
080.030026E Standard request
080.035016E Standard request
080.035026E Standard request
080.040016E Standard request
080.040026E Standard request
080.045016E Standard request
080.045026E Standard request
080.045030E Standard request
080.045040E Standard request
080.050020E Standard request
080.050030E Standard request
080.050040E Standard request
080.055030E Standard request
080.055040E Standard request
080.060030E Standard request
080.060040E Standard request
080.065030E Standard request
080.065040E Standard request
080.070030E Standard request
080.070040E Standard request
080.075030E Standard request
080.075040E Standard request
080.080030E Standard request
080.080040E Standard request
080.085030E Standard request
080.085040E Standard request
080.090030E Standard request
080.090040E Standard request
080.095030E Standard request
080.095040E Standard request
