BECA 006 Piston

BECA 006 Piston
BECA 006
beca_006_3d_v1
beca_006_3d_v2

Description

The BECA 006 Piston profile is a machined guide ring with a 30° angle cut as standard made from filled PTFE or PE-UHMW, depending on the type of application. We can offer these rings with an "integrated" embossing (also called teardrop structures). The embossing is a set of lubricating pockets that enable an improvement in friction. Other types of cuts can be made.

Advantages

Substantial and improved lubrication conditions through the teardrop structures
Very good friction coefficient; no stick-slip effect
Good wear resistance; very long life
Increased absorption of foreign particles
Good vibration absorption
No water absorption for the PE-UHMW

Technical data

Temperature

Filled PTFE: -60°C / +150°C (+200°C)
PE-UHMW: -60°C / +80°C (+100°C)

Speed

Filled PTFE: 15 m/s
PE-UHMW: 2 m/s

Medias

Mineral hydraulic oils
Biocompatible fluids
Water
Air
Others (contact our experts)

Max. compression resistance

30 to 35 N/mm²
Radial loads in dynamic applications

Filled PTFE:
  15 N/mm² at 25°C
  12 N/mm² at 80°C
  8 N/mm² at 120°C

PE-UHMW:
  25 N/mm² at 25°C
  10 N/mm² at 80°C

Applications

Agriculture
Food & Beverage
Shock absorbers
Maintenance
Dry applications
Injection presses
Pneumatics
Presses
Robotics
Standard cylinders

Materials

Bronze-filled PTFE
Carbon-filled PTFE
PE-UHMW

Dimensions
Installation dimensions
Materials
Design guidelines
Technical data

Dimensions

006.0080494, 006.0100694, 006.0120894, 006.0141094, 006.0151194, 006.0160115, 006.0161294, 006.0180135, 006.0181494, 006.0200155, 006.0201694, 006.0220175, 006.0221894, 006.0250205, 006.0250209, 006.0252194, 006.0270225, 006.0270229, 006.0272394, 006.0280235, 006.0280239, 006.0282494, 006.0300255, 006.0300259, 006.0302694, 006.0320275, 006.0320279, 006.0322894, 006.0330285, 006.0330289, 006.0332994, 006.0350305, 006.0350309, 006.0353194, 006.0360315, 006.0360319, 006.0363294, 006.0370325, 006.0370329, 006.0373394, 006.0380335, 006.0380339, 006.0383494, 006.0400355, 006.0400359, 006.0403694, 006.0410365, 006.0410369, 006.0413794, 006.0420375, 006.0420379, 006.0423894, 006.0450405, 006.0450409, 006.0454194, 006.0480435, 006.0480439, 006.0484494, 006.0500455, 006.0500459, 006.0504694, 006.0520475, 006.0520479, 006.0550505, 006.0550509, 006.0580535, 006.0580539, 006.0600555, 006.0600559, 006.0610565, 006.0610569, 006.0630585, 006.0630589, 006.0650605, 006.0650609, 006.0680635, 006.0680639, 006.0700655, 006.0700659, 006.0720675, 006.0720679, 006.0750705, 006.0750709, 006.0780735, 006.0780739, 006.0800755, 006.0800759, 006.0850805, 006.0850809, 006.0900855, 006.0900859, 006.0950905, 006.0950909, 006.1000955, 006.1000959, 006.1051005, 006.1051009, 006.1101055, 006.1101059, 006.1151105, 006.1151109, 006.1201155, 006.1201159, 006.1251205, 006.1251209, 006.1251202, 006.1301259, 006.1301252, 006.1351309, 006.1351302, 006.1401359, 006.1401352, 006.1451409, 006.1451402, 006.1501459, 006.1501452, 006.1551509, 006.1551502, 006.1601559, 006.1601552, 006.1651609, 006.1651602, 006.1701659, 006.1701652, 006.1751709, 006.1751702, 006.1801759, 006.1801751, 006.1801752, 006.1851809, 006.1851801, 006.1851802, 006.1901859, 006.1901851, 006.1901852, 006.1951909, 006.1951901, 006.1951902, 006.2001959, 006.2001951, 006.2001952, 006.2052009, 006.2052001, 006.2052002, 006.2102059, 006.2102051, 006.2102052, 006.2152109, 006.2152101, 006.2152102, 006.2202159, 006.2202151, 006.2202152, 006.2252209, 006.2252201, 006.2252202, 006.2302259, 006.2302251, 006.2302252, 006.2352309, 006.2352301, 006.2352302, 006.2402359, 006.2402351, 006.2402352, 006.2452409, 006.2452401, 006.2452402, 006.2502459, 006.2502451, 006.2502452, 006.2552501, 006.2552502, 006.2602551, 006.2602552, 006.2652601, 006.2652602, 006.2702651, 006.2702652, 006.2752701, 006.2752702, 006.2802751, 006.2802752, 006.2852801, 006.2852802, 006.2902851, 006.2902852, 006.2952901, 006.2952902, 006.3002951, 006.3002952, 006.3053001, 006.3053002, 006.3103051, 006.3103052, 006.3153101, 006.3153102, 006.3203151, 006.3203152, 006.3253201, 006.3253202, 006.3303251, 006.3303252, 006.3353301, 006.3353302, 006.3403351, 006.3403352, 006.3453401, 006.3453402, 006.3503451, 006.3503452, 006.3603551, 006.3603552, 006.3703651, 006.3703652, 006.3803751, 006.3803752, 006.3903851, 006.3903852, 006.4003951, 006.4003952, 006.4504451, 006.4504452, 006.5004951, 006.5004952

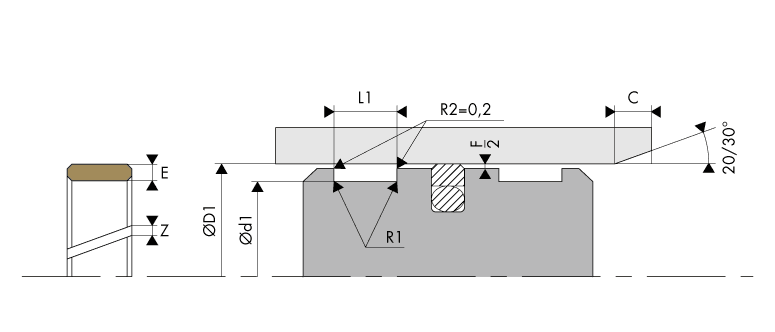

Installation drawingLogement Gorge Bague de guidage Porteur Segment - Housing Groove Wear ring - BECA 006 Piston

Installation dimensions

Housing Groove Wear ring Guide ring Guide seal - BECA 006 Piston

Installation dimensions

ISO 10766 Bore diameter Groove diameter Groove width Seal thickness Gap
ØD1 H9 Ød1 h8 L1 0/+0.20 E Z +/-0.50
* 8.0 - 20.0 D1 - 3.10 2.50 1.55 1.00
* 10.0 - 50.0 D1 - 3.10 4.00 1.55 1.00
* 16.0 - 140.0 D1 - 5.00 5.60 2.50 1.25
* 60.0 - 220.0 D1 - 5.00 9.70 2.50 1.25
* 130.0 - 400.0 D1 - 5.00 15.00 2.50 1.25
* 280.0 - 999.9 D1 - 5.00 25.00 2.50 1.25
* 280.0 - 999.9 D1 - 8.00 25.00 4.00 2.00

Other dimensions are possible, not taking ISO 10766 into consideration. Please contact our experts

Materials

Type of material Service temperature Characteristics Contact surface area
Filled PTFE -60°C / +150°C (+200°C) Very good friction coefficient
Good wear resistance
Good extrusion resistance
Excellent chemical inertia		 Steel, chrome steel, Cast iron
PE-UHMW -60°C/+80°C Good wear resistance
No water absorption
Low friction coefficient, self-lubricating		 Steel, stainless steel, chrome steel, aluminium, bronze, Cast iron, treated surface

Design guidelines

Guide sizing

The following formulas calculate the height "H" of the piston guide holder while taking account of the gap "Z" necessary at the ends of the ring after fitting. This gap "Z" offsets the thermal expansion under the effects of temperature, and prevents intermediate pressures and drag pressures in the system.

H = (F x f) / (ØD1 x Cr)

where:

H = Min. height of guide (mm)
F = Max. radial force (N)
f = Safety coefficient (we recommend 2)
ØD1 = Bore diameter (mm)
Cr = Permissible radial load in dynamic applications (N/mm²)

Types of cuts

The wear rings are made with a 30° angle cut as standard. Other types of cuts can be made on request, as shown in the diagram below.

Types of cuts for wear rings and guide strips

Technical data

Housing Groove Wear ring Guide ring Guide seal - BECA 006 Piston

Extrusion gaps

Bore diameter
ØD1		 Min. Radial extrusion gap
F/2 min		 Max. Radial extrusion gap
F/2 max
8.0 - 20.0 0.20 0.30
21.0 - 100.0 0.25 0.40
101.0 - 250.0 0.30 0.60
251.0 - 500.0 0.40 0.80
501.0 - 1000.0 0.50 1.10
> 1000.0 0.60 1.20

Surface roughness

Roughness Dynamic surface area Static surface area Groove flanks
Ra 0.05 - 0.2 µm ≤ 1.6 µm ≤ 3.2 µm
Rz 0.4 - 1.6 µm ≤ 6.3 µm ≤ 10.0 µm
Rmax 0.63 - 2.5 µm ≤ 10.0 µm ≤ 16.0 µm

Radius

Bore diameter
ØD1		 Radius
R1
≤ 250.0 0.20
> 250.0 0.40
225 dimensions found
006.0080494
Standard request
 8,00 4,90 4,00 1,55
006.0100694
Standard request
 10,00 6,90 4,00 1,55
006.0120894
Standard request
 12,00 8,90 4,00 1,55
006.0141094
Standard request
 14,00 10,90 4,00 1,55
006.0151194
Standard request
 15,00 11,90 4,00 1,55
006.0160115
Standard request
 16,00 11,00 5,60 2,50
006.0161294
Standard request
 16,00 12,90 4,00 1,55
006.0180135
Standard request
 18,00 13,00 5,60 2,50
006.0181494
Standard request
 18,00 14,90 4,00 1,55
006.0200155
Standard request
 20,00 15,00 5,60 2,50
006.0201694
Standard request
 20,00 16,90 4,00 1,55
006.0220175
Standard request
 22,00 17,00 5,60 2,50
006.0221894
Standard request
 22,00 18,90 4,00 1,55
006.0250205
Standard request
 25,00 20,00 5,60 2,50
006.0250209
Standard request
 25,00 20,00 9,70 2,50
006.0252194
Standard request
 25,00 21,90 4,00 1,55
006.0270225
Standard request
 27,00 22,00 5,60 2,50
006.0270229
Standard request
 27,00 22,00 9,70 2,50
006.0272394
Standard request
 27,00 23,90 4,00 1,55
006.0280235
Standard request
 28,00 23,00 5,60 2,50
006.0280239
Standard request
 28,00 23,00 9,70 2,50
006.0282494
Standard request
 28,00 24,90 4,00 1,55
006.0300255
Standard request
 30,00 25,00 5,60 2,50
006.0300259
Standard request
 30,00 25,00 9,70 2,50
006.0302694
Standard request
 30,00 26,90 4,00 1,55
006.0320275
Standard request
 32,00 27,00 5,60 2,50
006.0320279
Standard request
 32,00 27,00 9,70 2,50
006.0322894
Standard request
 32,00 28,90 4,00 1,55
006.0330285
Standard request
 33,00 28,00 5,60 2,50
006.0330289
Standard request
 33,00 28,00 9,70 2,50
006.0332994
Standard request
 33,00 29,90 4,00 1,55
006.0350305
Standard request
 35,00 30,00 5,60 2,50
006.0350309
Standard request
 35,00 30,00 9,70 2,50
006.0353194
Standard request
 35,00 31,90 4,00 1,55
006.0360315
Standard request
 36,00 31,00 5,60 2,50
006.0360319
Standard request
 36,00 31,00 9,70 2,50
006.0363294
Standard request
 36,00 32,90 4,00 1,55
006.0370325
Standard request
 37,00 32,00 5,60 2,50
006.0370329
Standard request
 37,00 32,00 9,70 2,50
006.0373394
Standard request
 37,00 33,90 4,00 1,55
006.0380335
Standard request
 38,00 33,00 5,60 2,50
006.0380339
Standard request
 38,00 33,00 9,70 2,50
006.0383494
Standard request
 38,00 34,90 4,00 1,55
006.0400355
Standard request
 40,00 35,00 5,60 2,50
006.0400359
Standard request
 40,00 35,00 9,70 2,50
006.0403694
Standard request
 40,00 36,90 4,00 1,55
006.0410365
Standard request
 41,00 36,00 5,60 2,50
006.0410369
Standard request
 41,00 36,00 9,70 2,50
006.0413794
Standard request
 41,00 37,90 4,00 1,55
006.0420375
Standard request
 42,00 37,00 5,60 2,50
006.0420379
Standard request
 42,00 37,00 9,70 2,50
006.0423894
Standard request
 42,00 38,90 4,00 1,55
006.0450405
Standard request
 45,00 40,00 5,60 2,50
006.0450409
Standard request
 45,00 40,00 9,70 2,50
006.0454194
Standard request
 45,00 41,90 4,00 1,55
006.0480435
Standard request
 48,00 43,00 5,60 2,50
006.0480439
Standard request
 48,00 43,00 9,70 2,50
006.0484494
Standard request
 48,00 44,90 4,00 1,55
006.0500455
Standard request
 50,00 45,00 5,60 2,50
006.0500459
Standard request
 50,00 45,00 9,70 2,50
006.0504694
Standard request
 50,00 46,90 4,00 1,55
006.0520475
Standard request
 52,00 47,00 5,60 2,50
006.0520479
Standard request
 52,00 47,00 9,70 2,50
006.0550505
Standard request
 55,00 50,00 5,60 2,50
006.0550509
Standard request
 55,00 50,00 9,70 2,50
006.0580535
Standard request
 58,00 53,00 5,60 2,50
006.0580539
Standard request
 58,00 53,00 9,70 2,50
006.0600555
Standard request
 60,00 55,00 5,60 2,50
006.0600559
Standard request
 60,00 55,00 9,70 2,50
006.0610565
Standard request
 61,00 56,00 5,60 2,50
006.0610569
Standard request
 61,00 56,00 9,70 2,50
006.0630585
Standard request
 63,00 58,00 5,60 2,50
006.0630589
Standard request
 63,00 58,00 9,70 2,50
006.0650605
Standard request
 65,00 60,00 5,60 2,50
006.0650609
Standard request
 65,00 60,00 9,70 2,50
006.0680635
Standard request
 68,00 63,00 5,60 2,50
006.0680639
Standard request
 68,00 63,00 9,70 2,50
006.0700655
Standard request
 70,00 65,00 5,60 2,50
006.0700659
Standard request
 70,00 65,00 9,70 2,50
006.0720675
Standard request
 72,00 67,00 5,60 2,50
006.0720679
Standard request
 72,00 67,00 9,70 2,50
006.0750705
Standard request
 75,00 70,00 5,60 2,50
006.0750709
Standard request
 75,00 70,00 9,70 2,50
006.0780735
Standard request
 78,00 73,00 5,60 2,50
006.0780739
Standard request
 78,00 73,00 9,70 2,50
006.0800755
Standard request
 80,00 75,00 5,60 2,50
006.0800759
Standard request
 80,00 75,00 9,70 2,50
006.0850805
Standard request
 85,00 80,00 5,60 2,50
006.0850809
Standard request
 85,00 80,00 9,70 2,50
006.0900855
Standard request
 90,00 85,00 5,60 2,50
006.0900859
Standard request
 90,00 85,00 9,70 2,50
006.0950905
Standard request
 95,00 90,00 5,60 2,50
006.0950909
Standard request
 95,00 90,00 9,70 2,50
006.1000955
Standard request
 100,00 95,00 5,60 2,50
006.1000959
Standard request
 100,00 95,00 9,70 2,50
006.1051005
Standard request
 105,00 100,00 5,60 2,50
006.1051009
Standard request
 105,00 100,00 9,70 2,50
006.1101055
Standard request
 110,00 105,00 5,60 2,50
006.1101059
Standard request
 110,00 105,00 9,70 2,50
006.1151105
Standard request
 115,00 110,00 5,60 2,50
