BECA 006 Rod

BECA 006 Rod
BECA 006
beca_006_3d_v1
beca_006_3d_v2

Description

The BECA 006 Rod profile is a machined guide ring with a 30° angle cut as standard made from filled PTFE or PE-UHMW, depending on the type of application. We can offer these rings with an "integrated" embossing (also called teardrop structures). The embossing is a set of lubricating pockets that enable an improvement in friction. Other types of cuts can be made.

Advantages

Substantial and improved lubrication conditions through the teardrop structures
Very good friction coefficient; no stick-slip effect
Good wear resistance; very long life
Increased absorption of foreign particles
Good vibration absorption
No water absorption for the PE-UHMW

Technical data

Temperature

Filled PTFE: -60°C / +150°C (+200°C)
PE-UHMW: -60°C / +80°C (+100°C)

Speed

Filled PTFE: 15 m/s
PE-UHMW: 2 m/s

Medias

Mineral hydraulic oils
Biocompatible fluids
Water
Air
Others (contact our experts)

Max. compression resistance

30 to 35 N/mm²
Radial loads in dynamic applications

Filled PTFE:
  15 N/mm² at 25°C
  12 N/mm² at 80°C
  8 N/mm² at 120°C

PE-UHMW:
  25 N/mm² at 25°C
  10 N/mm² at 80°C

Applications

Agriculture
Food & Beverage
Shock absorbers
Maintenance
Dry applications
Injection presses
Pneumatics
Presses
Robotics
Standard cylinders

Materials

Bronze-filled PTFE
Carbon-filled PTFE
PE-UHMW

Dimensions
Installation dimensions
Materials
Design guidelines
Technical data

Dimensions

006.0081114, 006.0101314, 006.0121514, 006.0141714, 006.0151814, 006.0161914, 006.0182114, 006.0202314, 006.0222514, 006.0252814, 006.0250305, 006.0273014, 006.0270325, 006.0283114, 006.0280335, 006.0303314, 006.0300355, 006.0300359, 006.0323514, 006.0320375, 006.0320379, 006.0333614, 006.0330385, 006.0330389, 006.0353814, 006.0350405, 006.0350409, 006.0363914, 006.0360415, 006.0360419, 006.0374014, 006.0370425, 006.0370429, 006.0384114, 006.0380435, 006.0380439, 006.0404314, 006.0400455, 006.0400459, 006.0414414, 006.0410465, 006.0410469, 006.0424514, 006.0420475, 006.0420479, 006.0454814, 006.0450505, 006.0450509, 006.0485114, 006.0480535, 006.0480539, 006.0505314, 006.0500555, 006.0500559, 006.0520575, 006.0520579, 006.0550605, 006.0550609, 006.0580635, 006.0580639, 006.0600655, 006.0600659, 006.0610665, 006.0610669, 006.0630685, 006.0630689, 006.0650705, 006.0650709, 006.0680735, 006.0680739, 006.0700755, 006.0700759, 006.0720779, 006.0750809, 006.0780839, 006.0800859, 006.0800851, 006.0850909, 006.0850901, 006.0900959, 006.0900951, 006.0951009, 006.0951001, 006.1001059, 006.1001051, 006.1051109, 006.1051101, 006.1101159, 006.1101151, 006.1151209, 006.1151201, 006.1201259, 006.1201251, 006.1251309, 006.1251301, 006.1301359, 006.1301351, 006.1351409, 006.1351401, 006.1401459, 006.1401451, 006.1451509, 006.1451501, 006.1501559, 006.1501551, 006.1551609, 006.1551601, 006.1601659, 006.1601651, 006.1651709, 006.1651701, 006.1701759, 006.1701751, 006.1751809, 006.1751801, 006.1801859, 006.1801851, 006.1851909, 006.1851901, 006.1901959, 006.1901951, 006.1952009, 006.1952001, 006.2002059, 006.2002051, 006.2002052, 006.2052101, 006.2052102, 006.2102151, 006.2102152, 006.2152201, 006.2152202, 006.2202251, 006.2202252, 006.2252301, 006.2252302, 006.2302351, 006.2302352, 006.2352401, 006.2352402, 006.2402451, 006.2402452, 006.2452501, 006.2452502, 006.2502551, 006.2502552, 006.2552601, 006.2552602, 006.2602651, 006.2602652, 006.2652701, 006.2652702, 006.2702751, 006.2702752, 006.2752801, 006.2752802, 006.2802851, 006.2802852, 006.2852901, 006.2852902, 006.2902951, 006.2902952, 006.2953001, 006.2953002, 006.3003051, 006.3003052, 006.3053101, 006.3053102, 006.3103151, 006.3103152, 006.3153201, 006.3153202, 006.3203251, 006.3203252, 006.3253301, 006.3253302, 006.3303351, 006.3303352, 006.3353401, 006.3353402, 006.3403451, 006.3403452, 006.3453501, 006.3453502, 006.3503551, 006.3503552, 006.3603651, 006.3603652

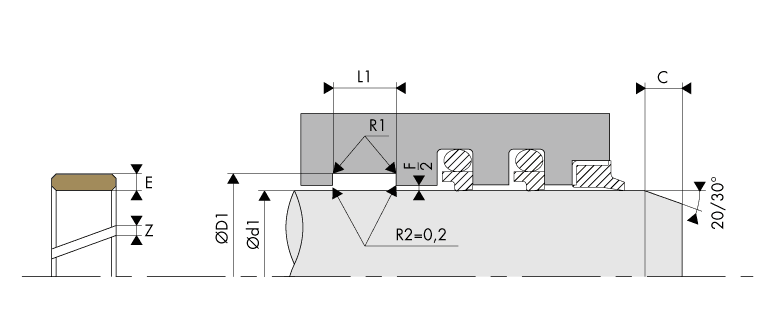

Installation drawingLogement Gorge Bague de guidage Porteur Segment - BECA 006 Tige - Housing Groove Wear ring - BECA 006 Rod

Installation dimensions

Housing Groove Wear ring Guide ring Guide seal - BECA 006 Rod

Installation dimensions

ISO 10766 Rod diameter Groove diameter Groove width Seal thickness Gap
Ød1 f8/h9 ØD1 H8 L1 0/+0.20 E Z +/-0.50
* 8.0 - 20.0 d1 + 3.10 2.50 1.55 1.00
* 10.0 - 50.0 d1 + 3.10 4.00 1.55 1.00
* 15.0 - 140.0 d1 + 5.00 5.60 2.50 1.25
* 20.0 - 220.0 d1 + 5.00 9.70 2.50 1.25
* 80.0 - 400.0 d1 + 5.00 15.00 2.50 1.25
* 200.0 - 999.9 d1 + 5.00 25.00 2.50 1.25
* 280.0 - 999.9 d1 + 8.00 25.00 4.00 2.00

Other dimensions are possible, not taking ISO 10766 into consideration. Please contact our experts.

Materials

Type of material Service temperature Characteristics Contact surface area
Filled PTFE -60°C / +150°C (+200°C) Very good friction coefficient
Good wear resistance
Good extrusion resistance
Excellent chemical inertia		 Steel, chrome steel, Cast iron
PE-UHMW -60°C/+80°C Good wear resistance
No water absorption
Low friction coefficient, self-lubricating		 Steel, stainless steel, chrome steel, aluminium, bronze, Cast iron, treated surface

Design guidelines

Guide sizing

The following formulas calculate the height "H" of the rod guide holder while taking account of the gap "Z" necessary at the ends of the ring after fitting. This gap "Z" offsets the thermal expansion under the effects of temperature, and prevents intermediate pressures and drag pressures in the system.

H = (F x f) / (Ød1 x Cr)

where:

H = Min. height of guide (mm)
F = Max. radial force (N)
f = Safety coefficient (we recommend 2)
Ød1 = Rod diameter (mm)
Cr = Permissible radial load in dynamic applications (N/mm²)

Types of cuts

The wear rings are made with a 30° angle cut as standard. Other types of cuts can be made on request, as shown in the diagram below.

Types of cuts for wear rings and guide strips

Technical data

Housing Groove Wear ring Guide ring Guide seal - BECA 006 Rod

Extrusion gaps

Rod diameter
Ød1		 Min. Radial extrusion gap
F/2 min		 Max. Radial extrusion gap
F/2 min
8.0 - 20.0 0.20 0.30
21.0 - 100.0 0.25 0.40
101.0 - 250.0 0.30 0.60
251.0 - 500.0 0.40 0.80
501.0 - 1000.0 0.50 1.10
> 1000.0 0.60 1.20

Surface roughness

Roughness Dynamic surface area Static surface area Groove flanks
Ra 0.05 - 0.2 µm ≤ 1.6 µm ≤ 3.2 µm
Rz 0.4 - 1.6 µm ≤ 6.3 µm ≤ 10.0 µm
Rmax 0.63 - 2.5 µm ≤ 10.0 µm ≤ 16.0 µm

Radius

Rod diameter Ød1 Radius
R1
≤ 250.0 0.20
> 250.0 0.40
188 dimensions found
006.0081114
Standard request
 8,00 11,10 4,00 1,55
006.0101314
Standard request
 10,00 13,10 4,00 1,55
006.0121514
Standard request
 12,00 15,10 4,00 1,55
006.0141714
Standard request
 14,00 17,10 4,00 1,55
006.0151814
Standard request
 15,00 18,10 4,00 1,55
006.0161914
Standard request
 16,00 19,10 4,00 1,55
006.0182114
Standard request
 18,00 21,10 4,00 1,55
006.0202314
Standard request
 20,00 23,10 4,00 1,55
006.0222514
Standard request
 22,00 25,10 4,00 1,55
006.0252814
Standard request
 25,00 28,10 4,00 1,55
006.0250305
Standard request
 25,00 30,00 5,60 2,50
006.0273014
Standard request
 27,00 30,10 4,00 1,55
006.0270325
Standard request
 27,00 32,00 5,60 2,50
006.0283114
Standard request
 28,00 31,10 4,00 1,55
006.0280335
Standard request
 28,00 33,00 5,60 2,50
006.0303314
Standard request
 30,00 33,10 4,00 1,55
006.0300355
Standard request
 30,00 35,00 5,60 2,50
006.0300359
Standard request
 30,00 35,00 9,70 2,50
006.0323514
Standard request
 32,00 35,10 4,00 1,55
006.0320375
Standard request
 32,00 37,00 5,60 2,50
006.0320379
Standard request
 32,00 37,00 9,70 2,50
006.0333614
Standard request
 33,00 36,10 4,00 1,55
006.0330385
Standard request
 33,00 38,00 5,60 2,50
006.0330389
Standard request
 33,00 38,00 9,70 2,50
006.0353814
Standard request
 35,00 38,10 4,00 1,55
006.0350405
Standard request
 35,00 40,00 5,60 2,50
006.0350409
Standard request
 35,00 40,00 9,70 2,50
006.0363914
Standard request
 36,00 39,10 4,00 1,55
006.0360415
Standard request
 36,00 41,00 5,60 2,50
006.0360419
Standard request
 36,00 41,00 9,70 2,50
006.0374014
Standard request
 37,00 40,10 4,00 1,55
006.0370425
Standard request
 37,00 42,00 5,60 2,50
006.0370429
Standard request
 37,00 42,00 9,70 2,50
006.0384114
Standard request
 38,00 41,10 4,00 1,55
006.0380435
Standard request
 38,00 43,00 5,60 2,50
006.0380439
Standard request
 38,00 43,00 9,70 2,50
006.0404314
Standard request
 40,00 43,10 4,00 1,55
006.0400455
Standard request
 40,00 45,00 5,60 2,50
006.0400459
Standard request
 40,00 45,00 9,70 2,50
006.0414414
Standard request
 41,00 44,10 4,00 1,55
006.0410465
Standard request
 41,00 46,00 5,60 2,50
006.0410469
Standard request
 41,00 46,00 9,70 2,50
006.0424514
Standard request
 42,00 45,10 4,00 1,55
006.0420475
Standard request
 42,00 47,00 5,60 2,50
006.0420479
Standard request
 42,00 47,00 9,70 2,50
006.0454814
Standard request
 45,00 48,10 4,00 1,55
006.0450505
Standard request
 45,00 50,00 5,60 2,50
006.0450509
Standard request
 45,00 50,00 9,70 2,50
006.0485114
Standard request
 48,00 51,10 4,00 1,55
006.0480535
Standard request
 48,00 53,00 5,60 2,50
006.0480539
Standard request
 48,00 53,00 9,70 2,50
006.0505314
Standard request
 50,00 53,10 4,00 1,55
006.0500555
Standard request
 50,00 55,00 5,60 2,50
006.0500559
Standard request
 50,00 55,00 9,70 2,50
006.0520575
Standard request
 52,00 57,00 5,60 2,50
006.0520579
Standard request
 52,00 57,00 9,70 2,50
006.0550605
Standard request
 55,00 60,00 5,60 2,50
006.0550609
Standard request
 55,00 60,00 9,70 2,50
006.0580635
Standard request
 58,00 63,00 5,60 2,50
006.0580639
Standard request
 58,00 63,00 9,70 2,50
006.0600655
Standard request
 60,00 65,00 5,60 2,50
006.0600659
Standard request
 60,00 65,00 9,70 2,50
006.0610665
Standard request
 61,00 66,00 5,60 2,50
006.0610669
Standard request
 61,00 66,00 9,70 2,50
006.0630685
Standard request
 63,00 68,00 5,60 2,50
006.0630689
Standard request
 63,00 68,00 9,70 2,50
006.0650705
Standard request
 65,00 70,00 5,60 2,50
006.0650709
Standard request
 65,00 70,00 9,70 2,50
006.0680735
Standard request
 68,00 73,00 5,60 2,50
006.0680739
Standard request
 68,00 73,00 9,70 2,50
006.0700755
Standard request
 70,00 75,00 5,60 2,50
006.0700759
Standard request
 70,00 75,00 9,70 2,50
006.0720779
Standard request
 72,00 77,00 9,70 2,50
006.0750809
Standard request
 75,00 80,00 9,70 2,50
006.0780839
Standard request
 78,00 83,00 9,70 2,50
006.0800859
Standard request
 80,00 85,00 9,70 2,50
006.0800851
Standard request
 80,00 85,00 15,00 2,50
006.0850909
Standard request
 85,00 90,00 9,70 2,50
006.0850901
Standard request
 85,00 90,00 15,00 2,50
006.0900959
Standard request
 90,00 95,00 9,70 2,50
006.0900951
Standard request
 90,00 95,00 15,00 2,50
006.0951009
Standard request
 95,00 100,00 9,70 2,50
006.0951001
Standard request
 95,00 100,00 15,00 2,50
006.1001059
Standard request
 100,00 105,00 9,70 2,50
006.1001051
Standard request
 100,00 105,00 15,00 2,50
006.1051109
Standard request
 105,00 110,00 9,70 2,50
006.1051101
Standard request
 105,00 110,00 15,00 2,50
006.1101159
Standard request
 110,00 115,00 9,70 2,50
006.1101151
Standard request
 110,00 115,00 15,00 2,50
006.1151209
Standard request
 115,00 120,00 9,70 2,50
006.1151201
Standard request
 115,00 120,00 15,00 2,50
006.1201259
Standard request
 120,00 125,00 9,70 2,50
006.1201251
Standard request
 120,00 125,00 15,00 2,50
006.1251309
Standard request
 125,00 130,00 9,70 2,50
006.1251301
Standard request
 125,00 130,00 15,00 2,50
006.1301359
Standard request
 130,00 135,00 9,70 2,50
006.1301351
Standard request
 130,00 135,00 15,00 2,50
006.1351409
Standard request
 135,00 140,00 9,70 2,50
006.1351401
Standard request
 135,00 140,00 15,00 2,50
006.1401459
Standard request
 140,00 145,00 9,70 2,50
