BECA 087B

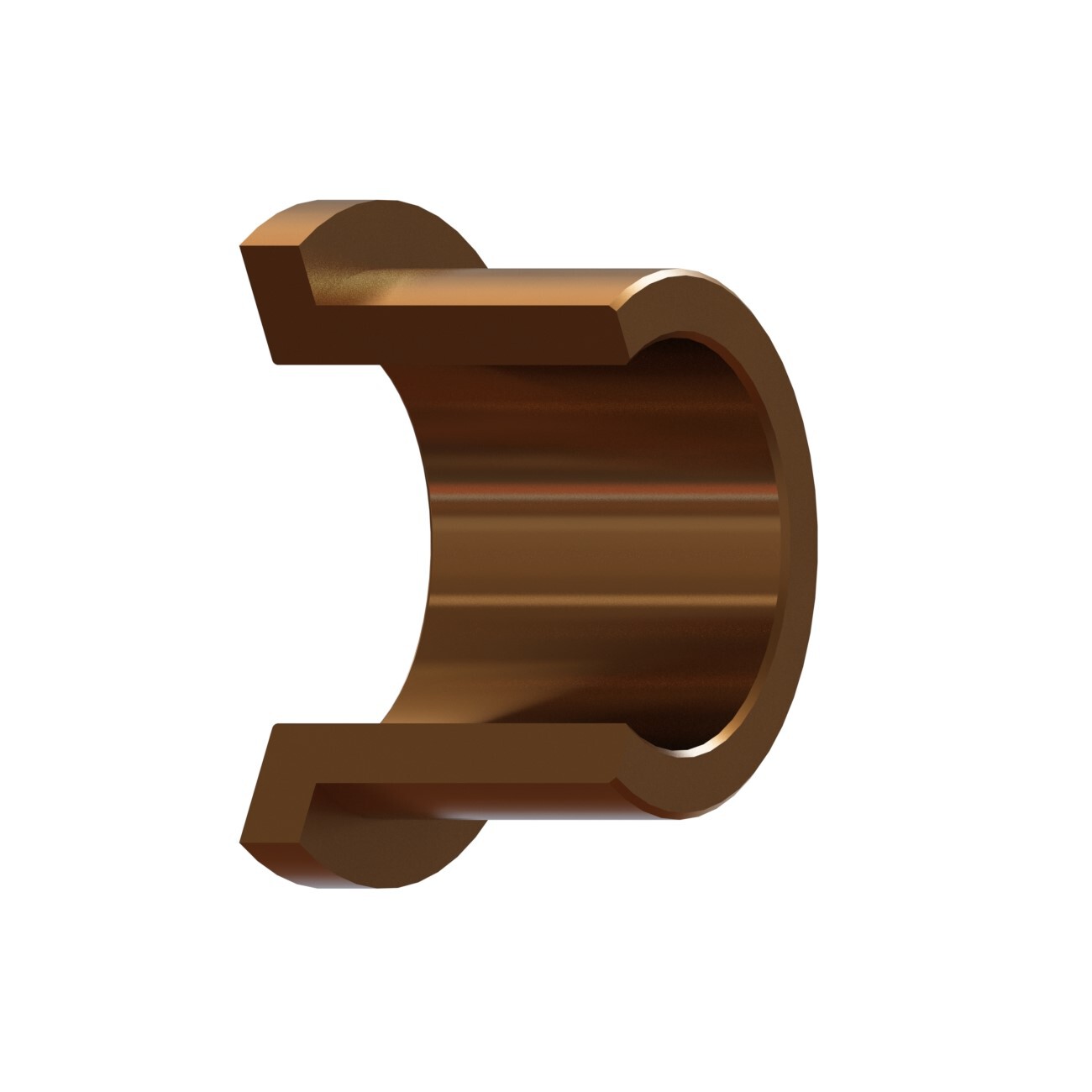

Sliding bearings / Sintered bushings

Copie de BECA 087A

Description

The BECA 150 - 152 - 154 profiles are single acting composite rod seals composed of a filled PTFE friction ring and pre-tightened rubber O'Ring. They can be assembled in grooves according to standard ISO 7425/2. Option of connecting the seal to a back-up ring.

Advantages

Optimal sealing in static and dynamic applications
Low friction coefficient; no stick-slip effect
Excellent abrasion and extrusion resistance
Wide temperature range and excellent chemical resistance, depending on the material selected for the O'Ring

Applications

Mobile machinery
Injection presses
Machine tools
Presses
Standard cylinders

Download

Product data - Hydraulic rod seal - BECA 150 - 152 - 154 Product catalog - Hydraulic seals - Rod seals Product catalog - Hydraulic seals

Dimensions

Technical data

Dimensions

Installation drawing Logement Gorge joint de tige Housing Groove rod seal BECA 150 - 152 - 154

Technical data

Housing Groove Gland Rod Seal - BECA 150 - 152 - 154

Extrusion gaps

Radial section S	Radial extrusion gap F/2
Radial section S	10 MPa	20 MPa	40 MPa
2.45	0.30	0.20	0.15
3.65	0.40	0.25	0.15
5.35	0.50	0.30	0.20
7.55	0.70	0.40	0.25
10.25	0.80	0.60	0.35
12.00	0.90	0.70	0.40
13.65	1.00	0.80	0.50
19.00	1.20	0.90	0.60

Surface roughness

Roughness	Dynamic surface area	Static surface area	Groove flanks
Ra	0.05 - 0.2 µm	≤ 1.6 µm	≤ 3.2 µm
Rz	0.40 - 1.6 µm	≤ 6.3 µm	≤ 10.0 µm
Rmax	0.63 - 2.5 µm	≤ 10.0 µm	≤ 16.0 µm

Chamfers and radius

Radial section S	Radius R1	Radius R2	Chamfer C
2.45	0.30	0.40	3.00
3.65	0.30	0.60	3.00
5.35	0.30	1.00	3.00
7.55	0.30	1.30	5.00
10.25	0.30	1.80	6.00
12.00	0.30	1.80	8.00
13.65	0.30	2.50	10.00
19.00	0.30	3.00	12.00

128 dimensions found

087-304042B Standard request
087-304055B Standard request
087-324050B Standard request
087-324232B Standard request
087-354550B Standard request
087-354535B Standard request
087-354545B Standard request
087-355550B Standard request
087-405040B Standard request
087-405050B Standard request
087-405060B Standard request
087-455530B Standard request
087-455545B Standard request
087-455555B Standard request
087-455645B Standard request
087-506050B Standard request
087-506060B Standard request
087-506070B Standard request
087-556445B Standard request
087-607250B Standard request
087-607260B Standard request
087-607560B Standard request
087-607565B Standard request
087-607570B Standard request
087-708560B Standard request
087-708580B Standard request
087-708556B Standard request
087-809570B Standard request
